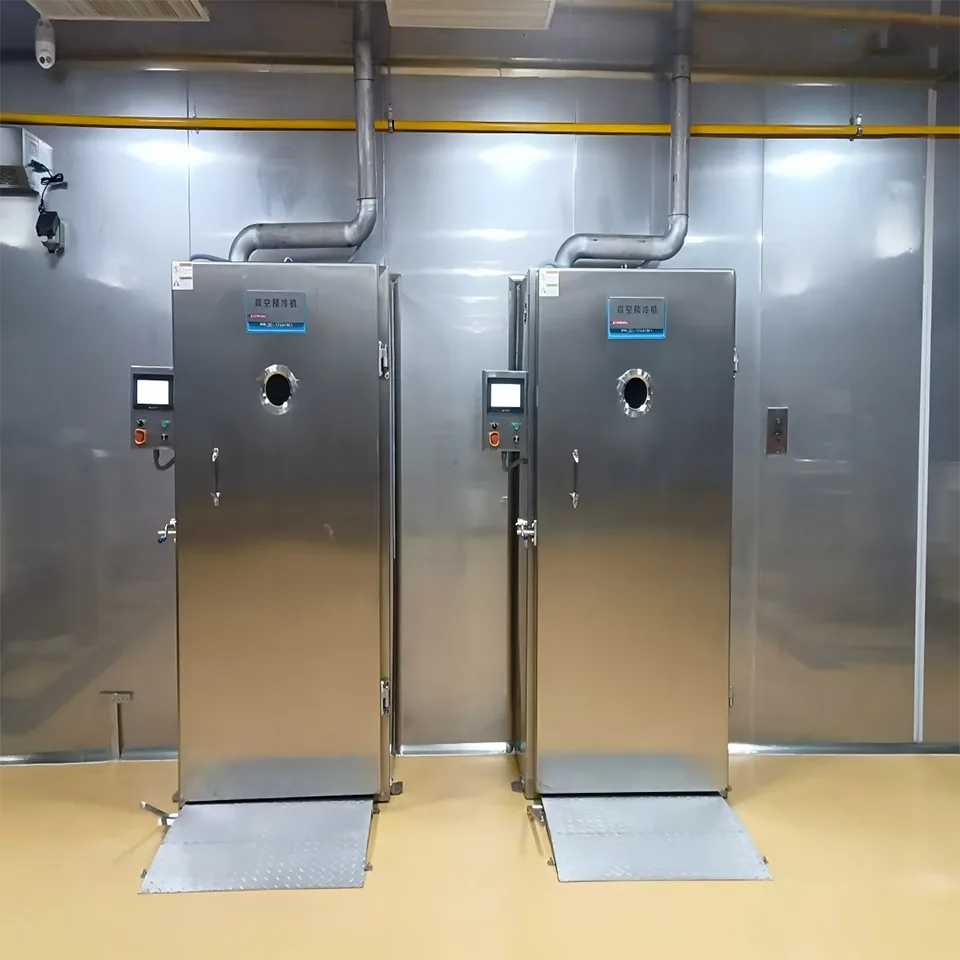

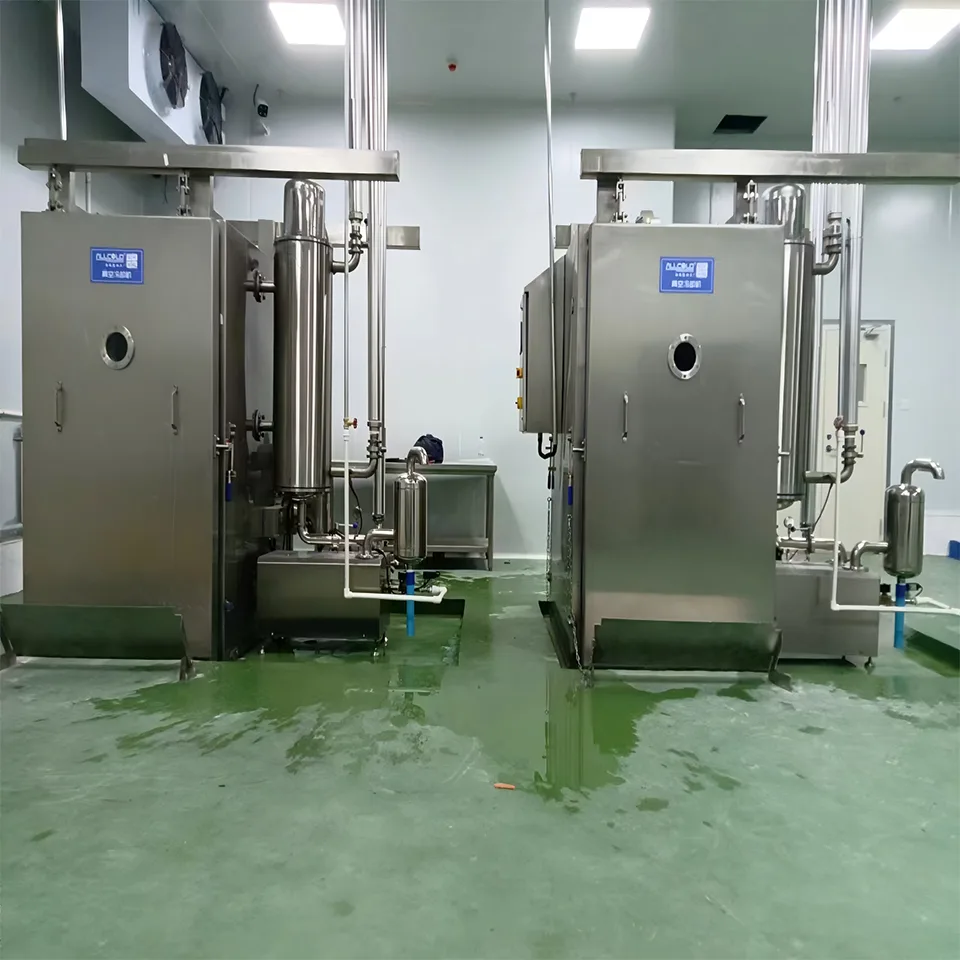

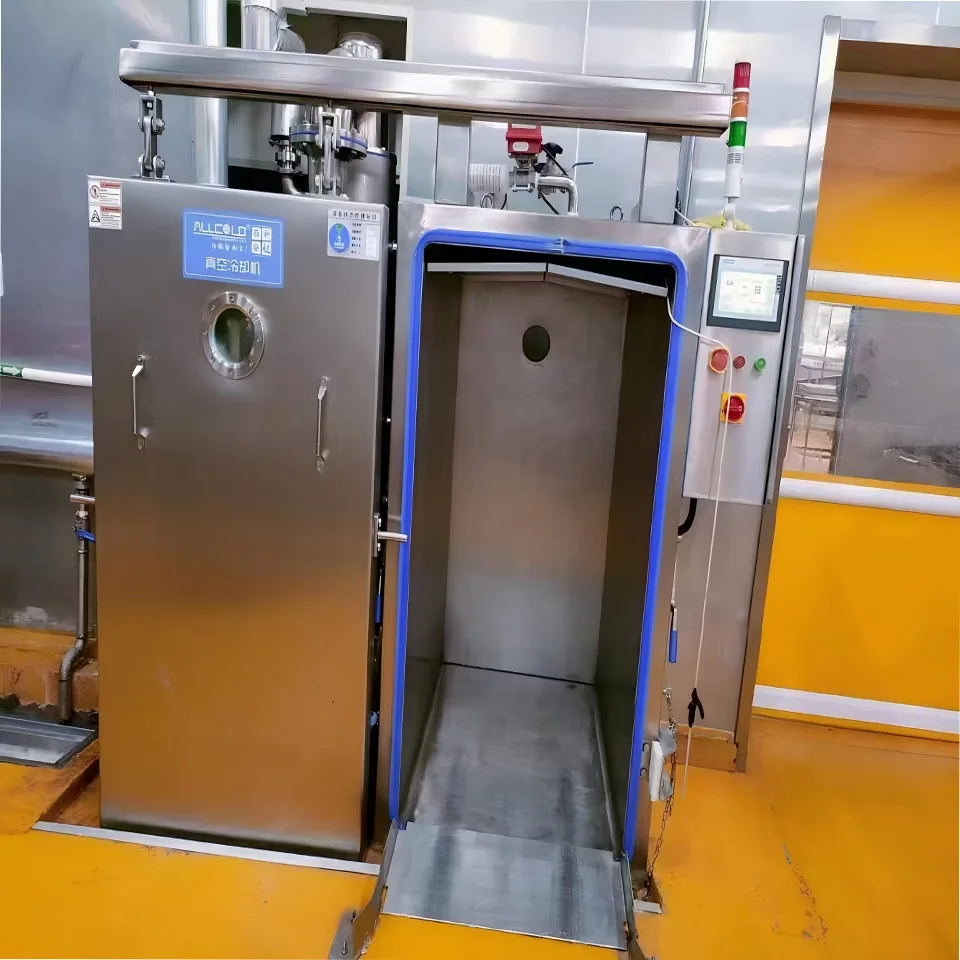

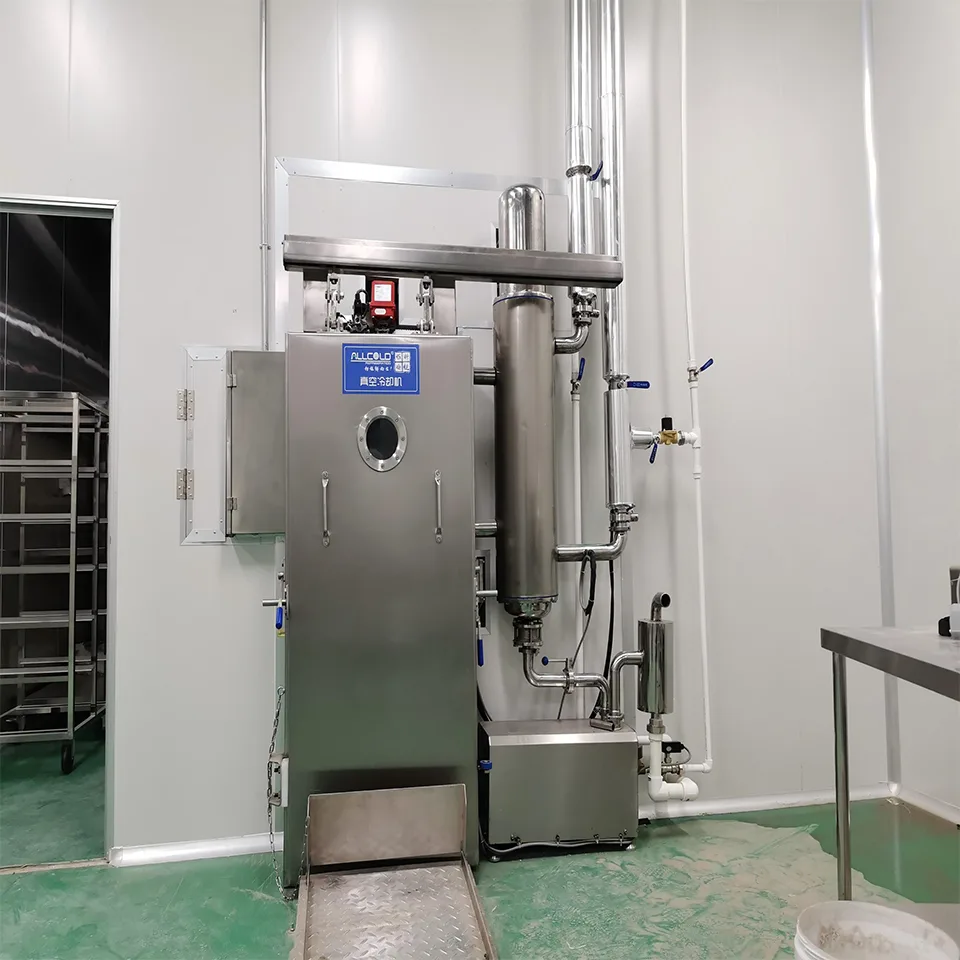

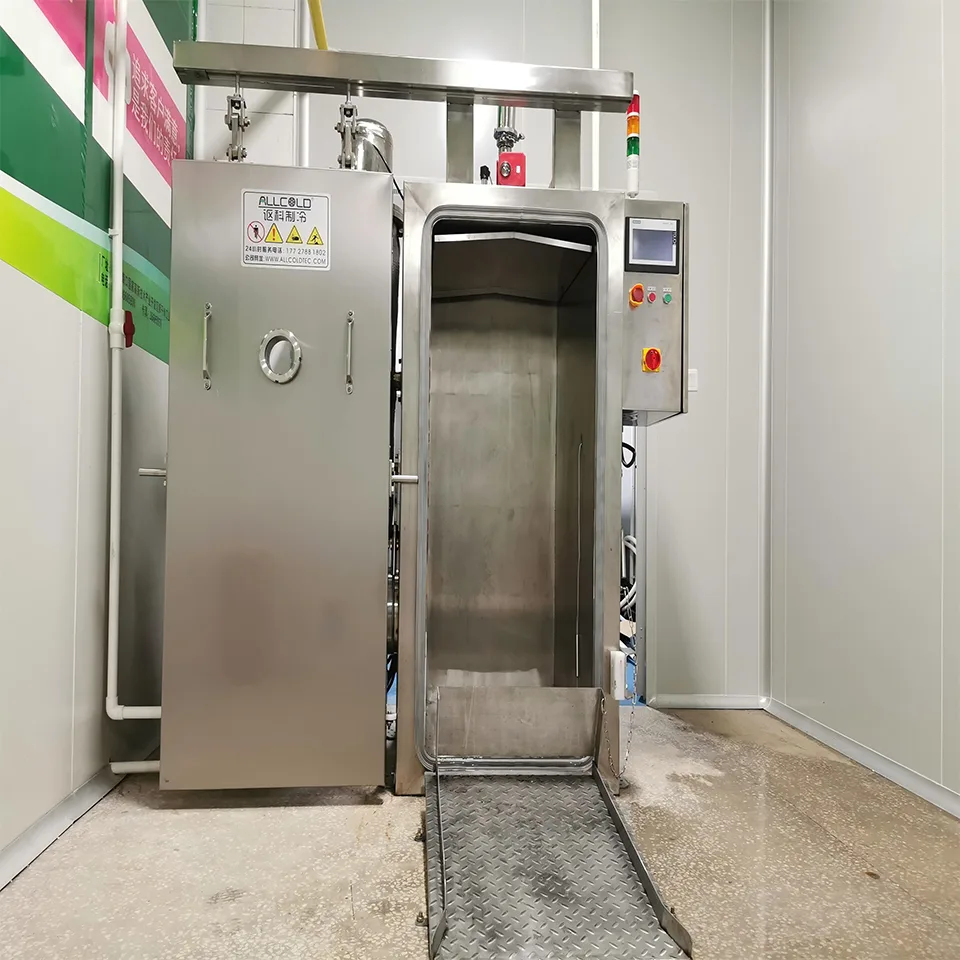

AVCF-100 Quick Vacuum Chiller 100kg Batch Stainless Steel Food Cooling Machine

Name: AVCF-100 Quick Vacuum Chiller 100kg Batch Stainless Steel Food Cooling Machine
Brand: Huayi Smart Solutions
SKU: Hl-1

SKU: Hl-1

These advanced vacuum chillers achieve temperature reduction from 85°C to 10°C in just 15 minutes, significantly accelerating production cycles. Built with full stainless steel construction and featuring German control systems, they are ideal for meat processing, prepared meals, and ready-to-eat food operations where speed, hygiene, and product quality are paramount.

Get a Quote

Product Details

Feature/Model	AVCF-100	AVCF-150	AVCF-200	AVCF-300	AVCF-400	AVCF-600
Model Number	AVCF-100	AVCF-150	AVCF-200	AVCF-300	AVCF-400	AVCF-600
Processing Capacity	100kg/batch	150kg/batch	200kg/batch	300kg/batch	400kg/batch	600kg/batch
Cycle Time	12-18 minutes	12-18 minutes	12-18 minutes	12-18 minutes	12-18 minutes	12-18 minutes
Vacuum Chamber Dimensions (W×D×H)	600×760×1380mm	760×600×1680mm	760×1080×1380mm	760×1080×1680mm	1050×1450×1380mm	1050×1450×1680mm
Cooling Method	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Vacuum Pump Power	2.2kW	2.2kW	2.2kW	3.85kW	4kW	5.5kW
Chiller Power & Tank Volume	15P/1m³	15P/1m³	20P/1m³	25P/1m³	30P/2m³	40P/2m³
Overall Material/IP Rating	Stainless Steel/IP69K	Stainless Steel/IP69K	Stainless Steel/IP69K	Stainless Steel/IP69K	Stainless Steel/IP69K	Stainless Steel/IP69K
Internal Chamber Size/Weight	1080×760×1680mm / 1250KG	1080×760×1680mm / 1250KG	1080×760×1680mm / 1250KG	1080×760×1680mm / 1250KG	1080×760×1680mm / 1250KG	1080×760×1680mm / 1250KG
External Dimensions (L×W×H)	2720×1380×2230mm	2720×1380×2230mm	2720×1380×2230mm	2720×1380×2230mm	2720×1380×2230mm	2720×1380×2230mm
Cooling Capacity	300KG	300KG	300KG	300KG	300KG	300KG
Production Capacity (kg/h)	1200KG	1200KG	1200KG	1200KG	1200KG	1200KG
Heat Loss Rate	3%-6%	3%-6%	3%-6%	3%-6%	3%-6%	3%-6%
Cooling Time (85°C-10°C)	15 minutes	15 minutes	15 minutes	15 minutes	15 minutes	15 minutes
Total Installed Power	3.85kW	3.85kW	3.85kW	3.85kW	3.85kW	3.85kW
Steam Consumption (kg/batch)	7.5KG	7.5KG	7.5KG	7.5KG	7.5KG	7.5KG
Electrical Components Brand	LS	LS	LS	LS	LS	LS
Control System	Vacuum Control System, German MIKE	Vacuum Control System, German MIKE	Vacuum Control System, German MIKE	Vacuum Control System, German MIKE	Vacuum Control System, German MIKE	Vacuum Control System, German MIKE
Vacuum Pump Brand	Guangdong Fozhen	Guangdong Fozhen	Guangdong Fozhen	Guangdong Fozhen	Guangdong Fozhen	Guangdong Fozhen
Ultimate Vacuum Degree	3 mPa	3 mPa	3 mPa	3 mPa	3 mPa	3 mPa

Product Overview

Engineered for modern food processing facilities requiring rapid cooling solutions, our Quick Chiller series delivers exceptional performance with batch capacities ranging from 100kg to 600kg. These industrial-grade chillers feature advanced vacuum cooling technology and German control systems, achieving temperature reduction from 85°C to 10°C in just 15 minutes. Built with full stainless steel construction and IP69K rating, they are perfectly suited for meat processing, ready meals, and prepared food operations where rapid cooling and strict hygiene standards are essential.

Key Features

Rapid Vacuum Cooling Technology
Advanced vacuum system achieves 85°C to 10°C cooling in just 15 minutes, significantly reducing product exposure time
High-Efficiency Processing
Batch capacities from 100kg to 600kg with consistent 12-18 minute cycle times ensure continuous production flow
Industrial-Grade Construction
Full stainless steel body with IP69K rating withstands rigorous cleaning and demanding production environments
Precision German Control System
German MIKE vacuum control ensures accurate temperature and pressure management for consistent results
Energy-Efficient Operation
Optimized power consumption with vacuum pumps from 2.2kW to 5.5kW balances performance and operating costs
Minimal Product Weight Loss
3%-6% heat loss rate preserves product quality and maximizes yield during cooling process

Applications

Ideal for various food cooling requirements
Cooked meat and poultry processing
Ready-to-eat meal production
Sauce and liquid product cooling
Bakery and confectionery items
Prepared food manufacturing
Deli and specialty food production

Technical Excellence

LS electrical components ensure reliable operation
3 mPa ultimate vacuum degree for optimal cooling efficiency
Air cooling system maintains consistent performance
Standard 1200kg/hour production capacity across all models
Comprehensive chiller systems from 15P to 40P capacity
Professional Guangdong Fozhen vacuum pumps

Transform your food cooling process with these high-performance vacuum chillers. Combining speed, efficiency, and hygienic design, this series offers professional cooling solutions for modern food processing facilities. Contact us to discuss your specific cooling requirements and receive detailed technical specifications.

Product FAQ

What applications is AVCF-100 Quick Vacuum Chiller 100kg Batch Stainless Steel Food Cooling Machine suitable for?

AVCF-100 Quick Vacuum Chiller 100kg Batch Stainless Steel Food Cooling Machine is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.

Can this product be customized or supplied as OEM?

Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.

How are warranty, spare parts, returns or replacements handled?

Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.

How can I get an accurate quotation for Hl-1?

Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.

Product Details

Product Reference

Product name: AVCF-100 Quick Vacuum Chiller 100kg Batch Stainless Steel Food Cooling Machine
SKU / Model code: Hl-1
Categories: Food Processing Equipment / Refrigeration & Freezing Equipment / Vacuum Cooler
Supplier: Huayi Smart Solutions
