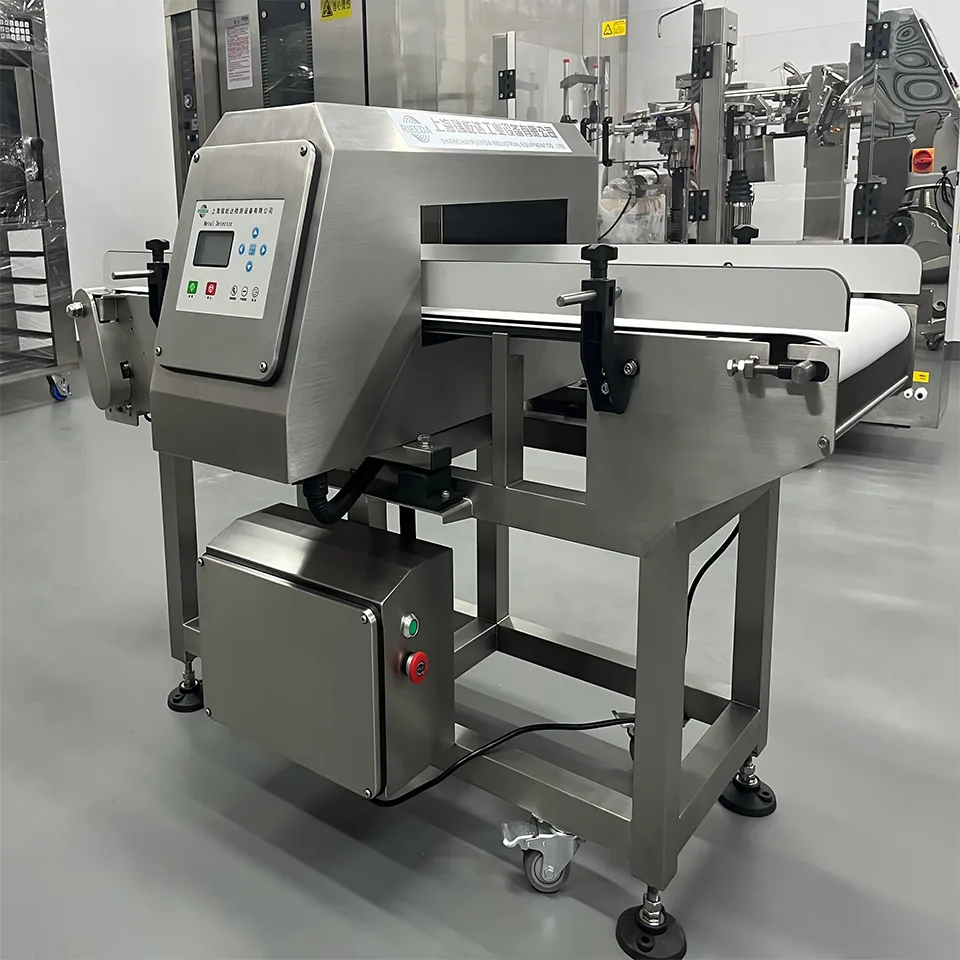

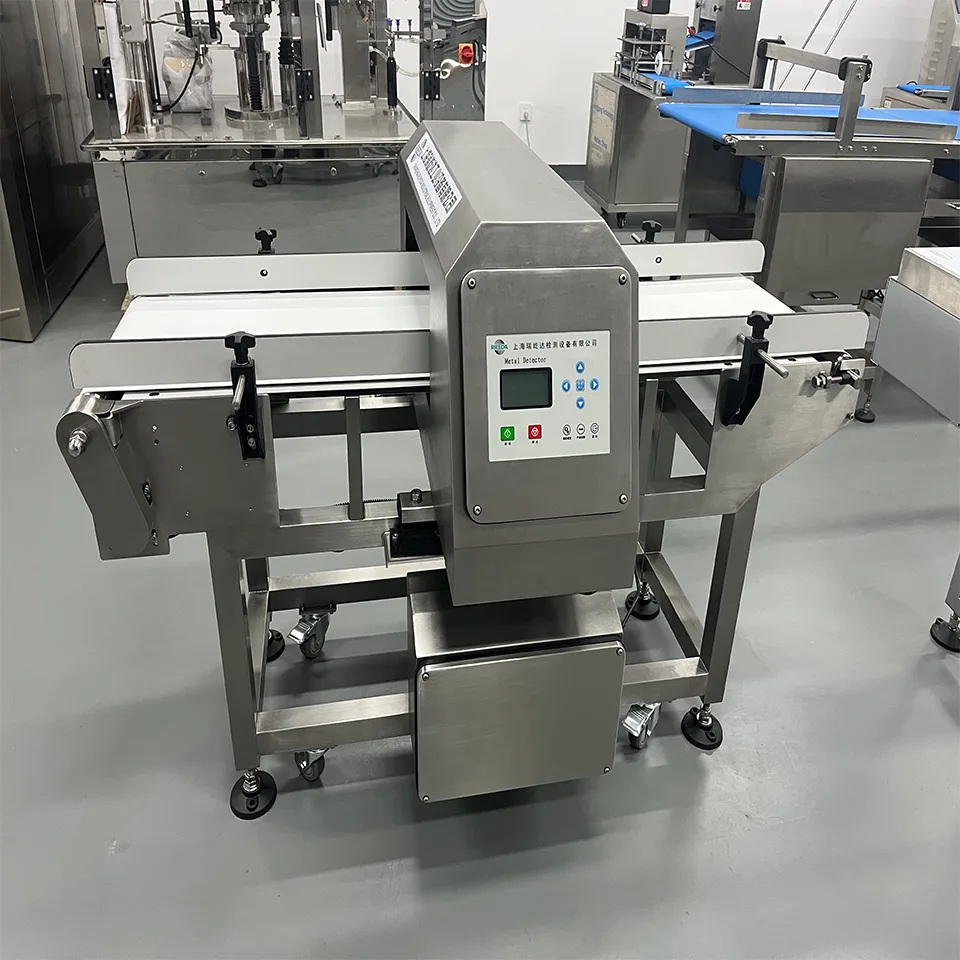

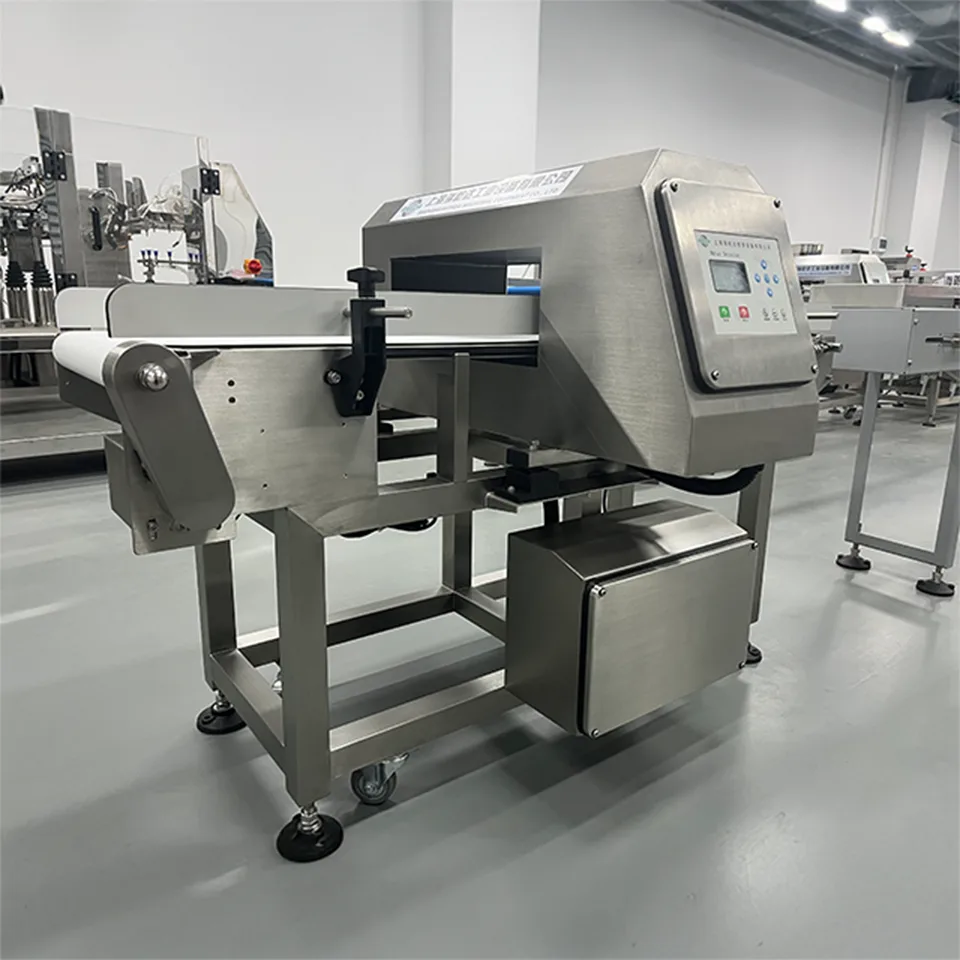

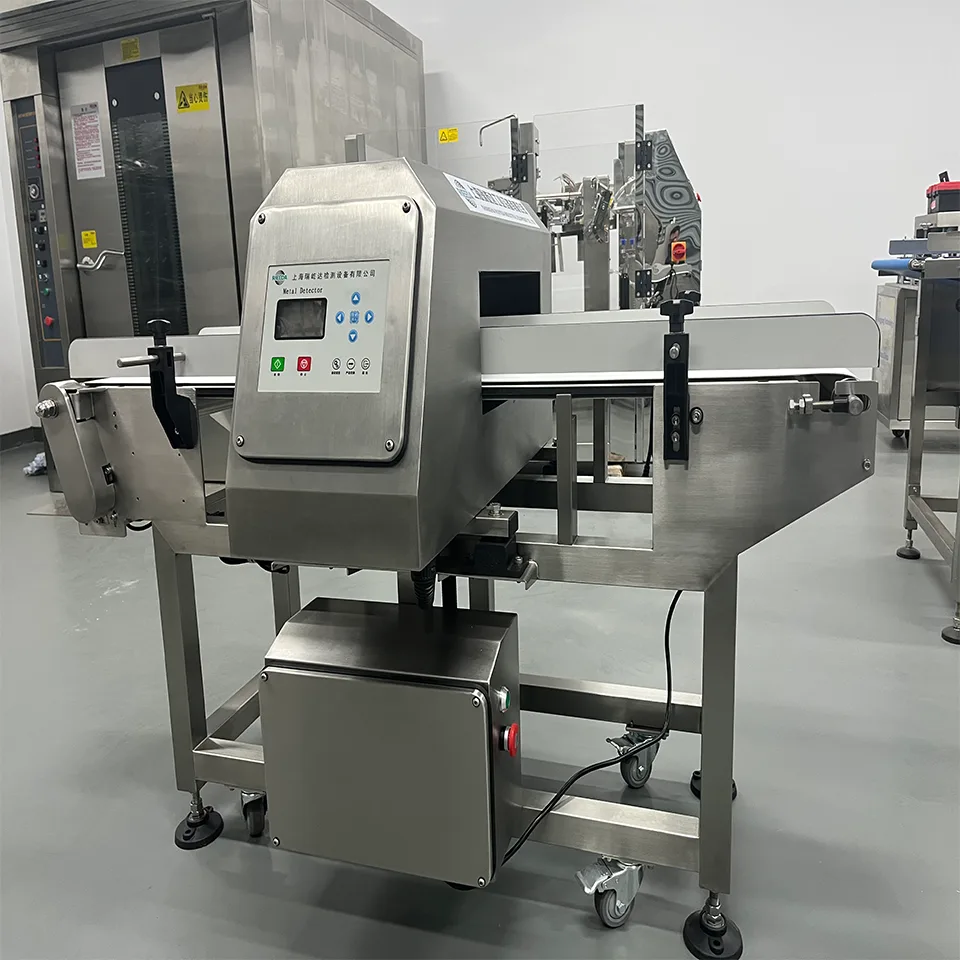

Pengesan Logam Kepekaan Tinggi RD-2008A untuk Industri Makanan Bakeri Keluli Tahan Karat SUS304
SKU: HJ-1
| Parameter Category | Parameter | Value |
|---|---|---|
| General Information | Model | RD-2008A (Standard Model) |
| Application | Baking Industry | |
| Main Material | SUS304 Stainless Steel | |
| Design Features | Fully compliant with GMP standards and FDA certification requirements | |
| Material Effect Suppression | Standard Anti-interference Shielding | |
| Detection Chip | Imported Chip | |
| Mechanical Specifications | Overall Length | L1200mm |
| Aperture Size | W250×H110mm | |
| Product Pass Size | W250×H80mm | |
| Conveyor Height | 850±50mm | |
| Conveying Direction | Left to Right | |
| Conveyor Belt Width | 200mm (Imported PU, oil-resistant, low-temperature resistant, waterproof) | |
| Electrical & Control Specifications | Detection Method | Automatic |
| Detection Probe | DPS Digital Signal Source (Germany) | |
| Operation Interface | Electroplated Key Operation | |
| Recording Function | Detection counting function, automatically counting total products, qualified products, and defective products | |
| Automatic Setting Function | Automatic setting (detection sensitivity can be automatically set after product runs through once) | |
| Protection Level | IP56 Food Grade | |
| Optimal Sensitivity (No Load) | Fe≥Ø0.8mm, N-Fe≥Ø1.0mm, SUS304≥Ø1.5mm | |
| Note | Detection sensitivity may vary depending on product material effects and environment | |
| Alarm Method | Audible-Visual Alarm | |
| Rejection Method | Screen shows metal detection, with automatic pneumatic rejection | |
| Belt Speed | 26m/min | |
| Operating Temperature | -18℃~50℃ |
The RD-2008A Metal Detector is a pr
Penerangan Produk – Pengesan Logam Industri Makanan RD-2008A
ofessional-grade inspection solution designed specifically for the food and baking industry, helping manufacturers ensure product safety, regulatory compliance, and consistent quality. Built with SUS304 stainless steel and fully compliant with GMP standards and FDA requirements, it is ideal for integration into modern food production lines.
Pengesanan Logam yang Boleh Dipercayai untuk Keselamatan Makanan
Equipped with an imported detection chip and German DPS digital signal probe, the RD-2008A delivers stable and accurate metal detection, even in environments with strong product effects. The standard anti-interference shielding effectively suppresses material interference, ensuring reliable inspection of baked goods and packaged food products.
Sensitiviti pengesanan tanpa beban optimum:
-
Fe ≥ Ø0.8 mm
-
Non-Fe ≥ Ø1.0 mm
-
SUS304 ≥ Ø1.5 mm
(Sensitiviti sebenar mungkin berbeza bergantung pada ciri produk dan persekitaran operasi.)
Reka Bentuk Gred Makanan & Pembinaan Tahan Lasak
-
Bahan Utama: SUS304 stainless steel
-
Tahap Perlindungan: IP56 food-grade, suitable for wash-down environments
-
Tali Penghantar: Imported PU belt (oil-resistant, low-temperature resistant, waterproof)
-
Lebar Tali: 200 mm
Struktur higieni memastikan pembersihan yang mudah dan ketahanan jangka panjang, menjadikannya sesuai untuk penggunaan berterusan di kilang makanan.
Kawalan Pintar & Operasi Mudah
The RD-2008A features an electroplated key operation interface for simple, intuitive control. Its automatic detection and auto-setting function allows the system to calibrate sensitivity after a single product pass, reducing setup time and operator error.
Fungsi rakaman terbina dalam termasuk:
-
Jumlah kiraan produk
-
Kiraan produk yang layak
-
Kiraan produk yang cacat
Ini menjadikan penjejakan kualiti dan pelaporan pengeluaran lebih cekap.
Sistem Penolakan & Penggera yang Cekap
When metal contamination is detected, the system triggers a visual and audible alarm, while the screen displays detection information. A pneumatic automatic rejection system removes contaminated products from the line immediately, minimizing risk and downtime.
Keadaan Operasi
-
Kaedah Pengesanan: Fully automatic
-
Suhu Operasi: -18°C to 50°C
Sesuai untuk pelbagai persekitaran pemprosesan makanan, termasuk kawasan pengeluaran sejuk.
Aplikasi Ideal
-
Talian pengeluaran bakeri dan barangan bakar
-
Kilang pemprosesan dan pembungkusan makanan
-
Pengeluar snek, pastri, dan konfeksi
-
Mana-mana persekitaran pengeluaran makanan yang memerlukan kawalan pencemaran logam yang ketat
The RD-2008A Food Industry Metal Detector combines precision detection, hygienic design, and intelligent automation, making it a dependable choice for food manufacturers seeking to meet international safety standards and Amazon-level quality expectations.
