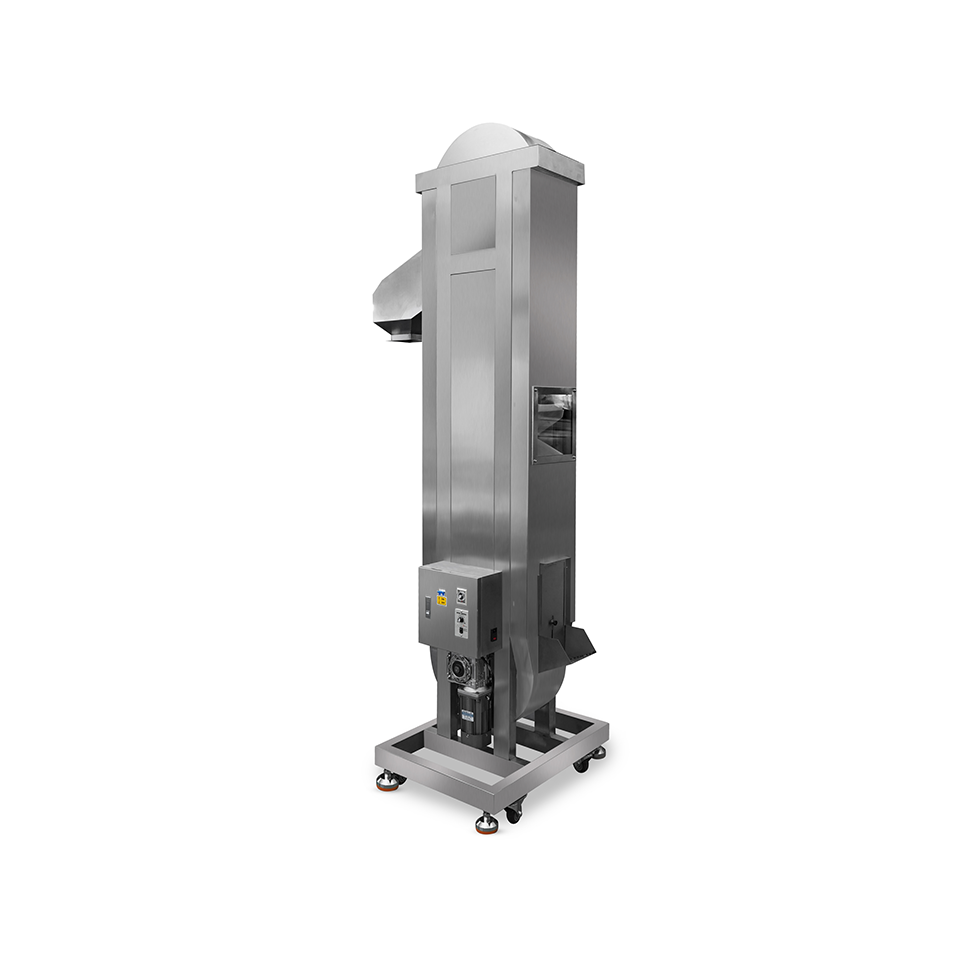

Continuous Bucket Elevator with 0.6 m/s Belt Speed and 2.4 L Buckets

Product Overview

The Bucket Elevator is designed for stable, efficient, and continuous vertical conveying of bulk materials in food processing and industrial environments. With a compact structure and reliable performance, it is ideal for production lines requiring hygienic and controlled material lifting.

Efficient Vertical Conveying Performance

Featuring a lifting height of 1800 mm and a maximum conveying capacity of 6 m³/h, this bucket elevator ensures smooth and consistent material transfer. The optimized bucket spacing and belt speed provide efficient operation while minimizing material loss during conveying.

Food Industry Application

This bucket elevator is suitable for handling a wide range of food products, including grains, rice, seeds, nuts, beans, pet food, and similar granular materials. It is widely used in food processing plants, packaging lines, and agricultural operations where clean and gentle conveying is required.

Precision Bucket and Belt Design

Equipped with BM1715 rice machine buckets with a maximum capacity of 2.4 L per bucket and a bucket width of 176 mm, the system ensures stable loading and discharge. The 180 mm belt width and 200 mm bucket pitch provide reliable material flow and reduce spillage.

Stable Power and Adjustable Speed

Powered by AC 220V / 50Hz and driven by a 370 W variable-speed motor, the bucket elevator allows flexible speed adjustment to match different material types and production requirements. The maximum belt speed of 0.6 m/s ensures balanced efficiency and gentle handling.

Durable Structure and Compact Footprint

With an overall size of 1800 × 900 × 2600 mm and a net weight of 270 kg, the machine features a solid industrial-grade structure for long-term operation. Its compact vertical design makes it easy to integrate into existing processing or packaging lines.

Ideal for Commercial and Export Use

Designed for reliability, efficiency, and food-industry applications, this Bucket Elevator is well suited for commercial food processing, packaging workshops, OEM projects, and international export markets, making it an excellent choice for Amazon and B2B listings.
