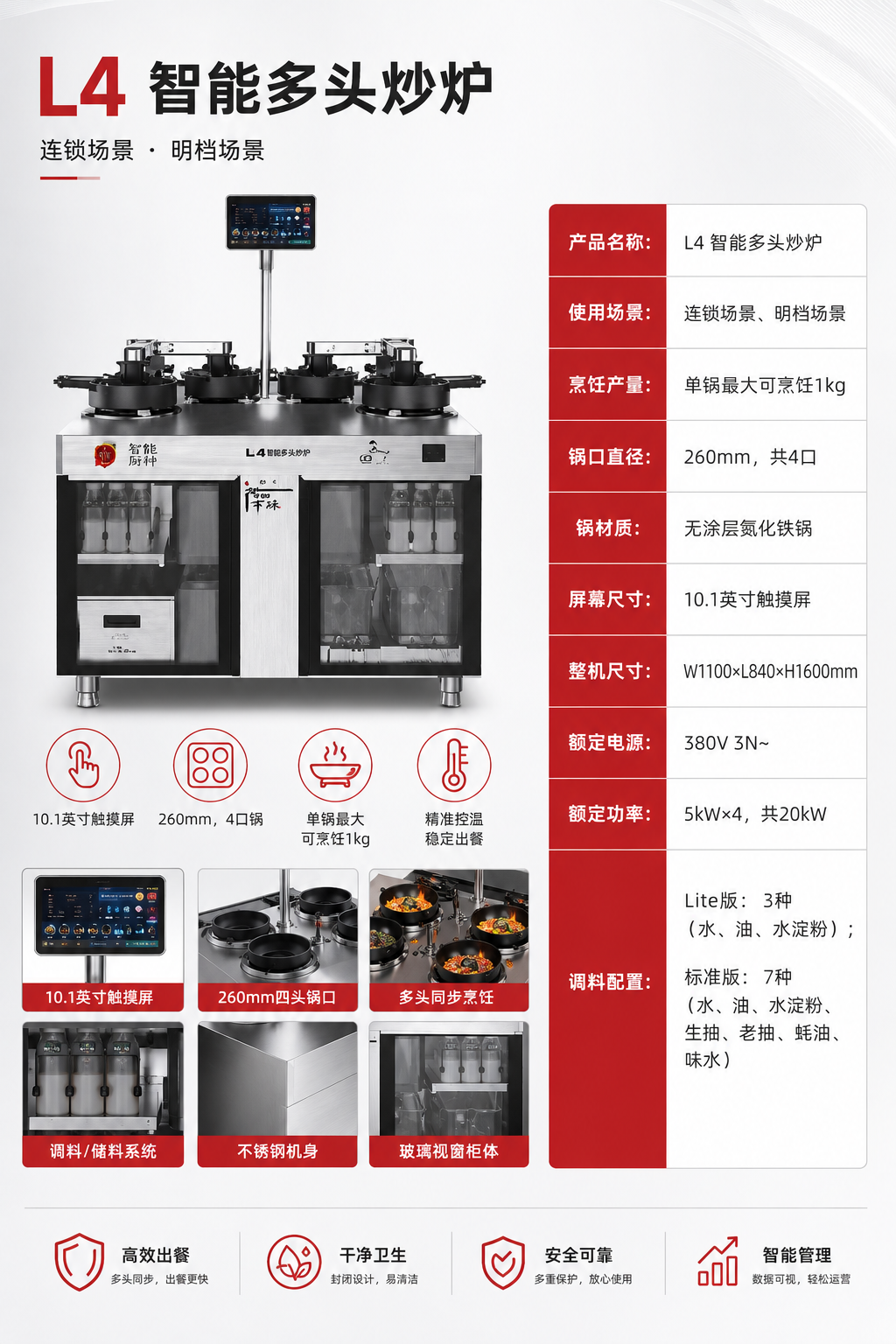

Smart 4-Pot Multi-Head Cooking Range (L4)
SKU: UT-L4
Four independently operated pots on one machine with planetary dual-track stirring covering the full wok bottom. Heats to 200 C in 10 seconds; one seasoning feed doses two pots simultaneously.
Smart 4-Pot Multi-Head Cooking Range (L4)
These robots reproduce master-chef wok technique with patented temperature control, seasoning precision and digital recipes.
What Is a Multi-Head Cooking Range?
Four pots share one machine with independent control, dramatically raising kitchen output per square meter. Planetary dual-track stirring and dual-pot seasoning feeding keep every pot consistent.
Key Features
- Patented rapid heating - up to 27.8 C/s, 300 C high-temperature flash stir-fry with wok hei
- +/-1 C extreme temperature sensing with 0.1s infrared measurement
- Automatic seasoning with up to 0.1g precision
- Digital recipe system - create, manage and distribute recipes to all stores
- One operator can manage 3 machines
- Component-based modular design for easy maintenance
- Level-1 energy rating, 92% heating efficiency
- 4 pots on one machine - high floor-area efficiency
- 10-second heat-up to 200 C
- Planetary dual-track stirring, full wok-bottom coverage
- One seasoning feed doses two pots
Product Specifications
| Model | L4 |
|---|---|
| Per-pot batch | 1 kg (4 pots) |
| Wok diameter | 260 mm each |
| Touch screen | 10.1" |
| Dimensions | W1100 x L840 x H1600 mm |
| Power supply | 380V 3N~ |
| Rated power | 5 kW x 4 = 20 kW |
| Seasoning channels | 7 (standard) / 3 (Lite) |
Applications
- Chain restaurants
- Group catering / canteens
- Open kitchen (Ming Dang)
- Fast-service restaurants and food courts
Inquiry Information
For quotation, please send your menu type, daily output, voltage requirement and destination country.
Product FAQ
What applications is Smart 4-Pot Multi-Head Cooking Range (L4) suitable for?
Smart 4-Pot Multi-Head Cooking Range (L4) is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for UT-L4?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: Smart 4-Pot Multi-Head Cooking Range (L4)
- SKU / Model code: UT-L4
- Categories: Catering Robots / Smart Stir-Fry Machine / Commercial Restaurant Version
- Supplier: Huayi Smart Solutions
