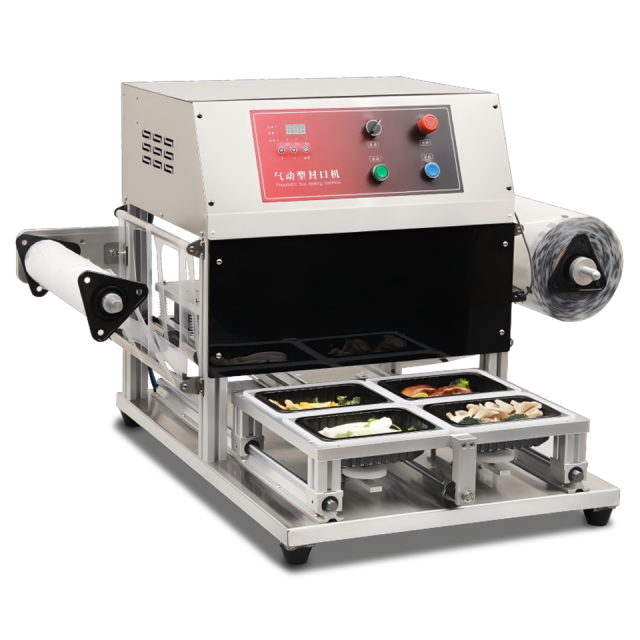

Pneumatic Tray Sealer Stainless Steel 370mm Film 360-1200 Boxes Hour
SKU: HB-13
| Standard Packaging | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | QF370T-S | Main Structure & Housing | Stainless Steel |
| Max. Roll Film Width (mm) | 370 | Mold Part | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 200 | Photoelectric Sensor (Length Measuring) | Dasheng Self-developed |
| Packaging Speed (times/min) | 5～6 | Photoelectric Sensor (Cursor Film) | Xinling Electric |
| Production Capacity (boxes/hour) - 1-out | ≈360 | Air Cylinder | Tianqi 100 Cylinder * 2 |
| Production Capacity (boxes/hour) - 2-out | ≈640 | Solenoid Valve | Airtac (Taiwan) |
| Production Capacity (boxes/hour) - 4-out | ≈1200 | Filter | Airtac (Taiwan) |
| Power Supply (V/Hz) | 220/50 | Film Rewinding Motor | Taisong |
| Total Power (kW) | 2.1 | Control System | Dasheng Intelligent Self-developed Control System |
| Working Air Pressure (Mpa) | 0.6～0.8 | Push Button Switch | Chint |
| Equipment Weight (kg) | 86 | Cartridge Cylinder | Tianqi |
| Equipment Dimension LWH (mm) | 1035950665 | ||
| Packaged Gross Weight (kg) | 114 | ||
| Anneng Volumetric Weight (kg) | 188 | ||
| Outer Carton Dimension LWH (mm) | 10701070820 | ||

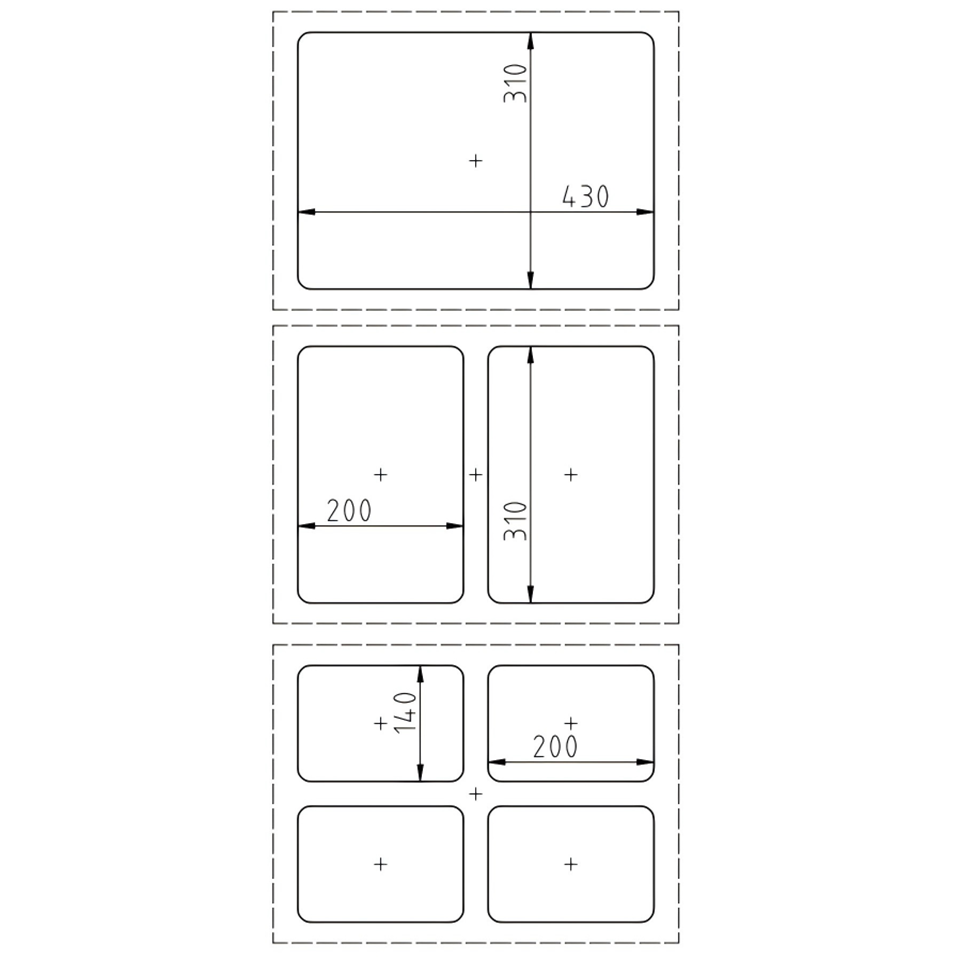

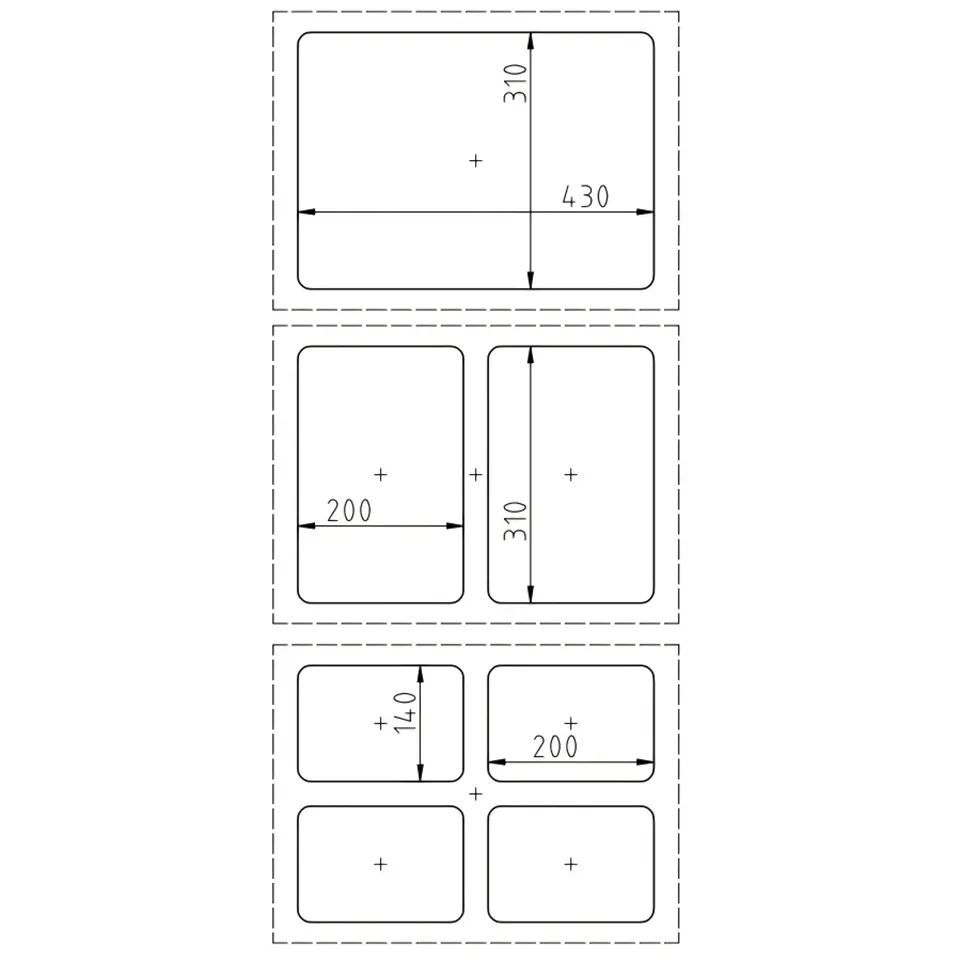

| Max. Tray Size (mm) - 1-out | 43031080 (*1) | ||
| Max. Tray Size (mm) - 2-out | 31020080 (*2) | ||
| Max. Tray Size (mm) - 4-out | 20014080 (*4) |
Product Overview
Key Features
High-Capacity Pneumatic System - Dual Tianqi 100mm cylinders with Airtac valves provide powerful sealing force for continuous operation
Multi-Outlet Efficiency - 4-out configuration enables simultaneous processing of multiple trays
Precision Film Control - Advanced photoelectric sensors ensure accurate film positioning
Industrial-Grade Construction - Full stainless steel housing with anodized aluminum molds
Smart Operation - Self-developed control system with intuitive interface
Applications
Large-Scale Food Processing - Ideal for meat, poultry and prepared foods packaging
Meal Production Facilities - Perfect for high-volume meal kit and ready-to-eat food lines
Industrial Packaging - Suitable for bulk packaging operations
Food Distribution Centers - Excellent for central kitchen and distribution applications
Technical Advantages
Heavy-duty pneumatic system ensures reliable performance
Quick changeover between different tray configurations
Energy-efficient operation with 2.1kW power consumptionCompact footprint (1035×950×665mm) for production lines
Product FAQ
What applications is Pneumatic Tray Sealer Stainless Steel 370mm Film 360-1200 Boxes Hour suitable for?
Pneumatic Tray Sealer Stainless Steel 370mm Film 360-1200 Boxes Hour is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-13?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: Pneumatic Tray Sealer Stainless Steel 370mm Film 360-1200 Boxes Hour
- SKU / Model code: HB-13
- Categories: Packaging Machine / Tray Sealer / Modified Atmosphere Packaging Machine
- Supplier: Huayi Smart Solutions
