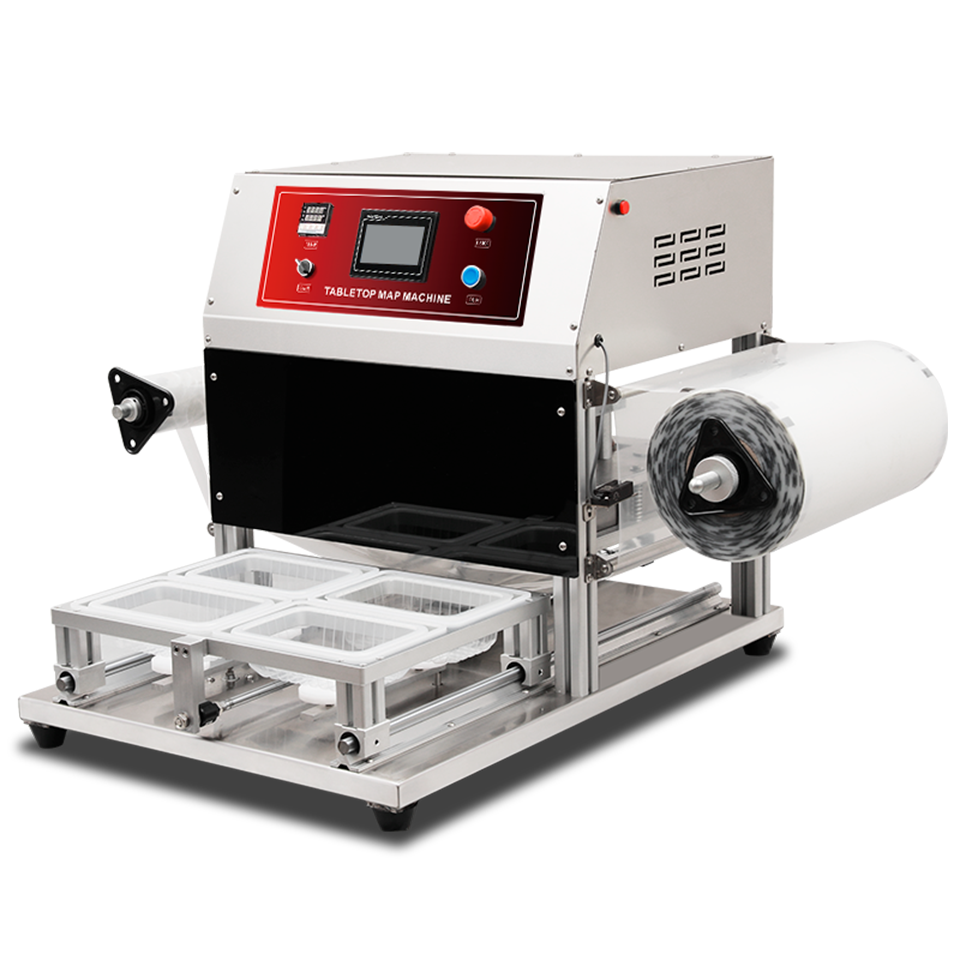

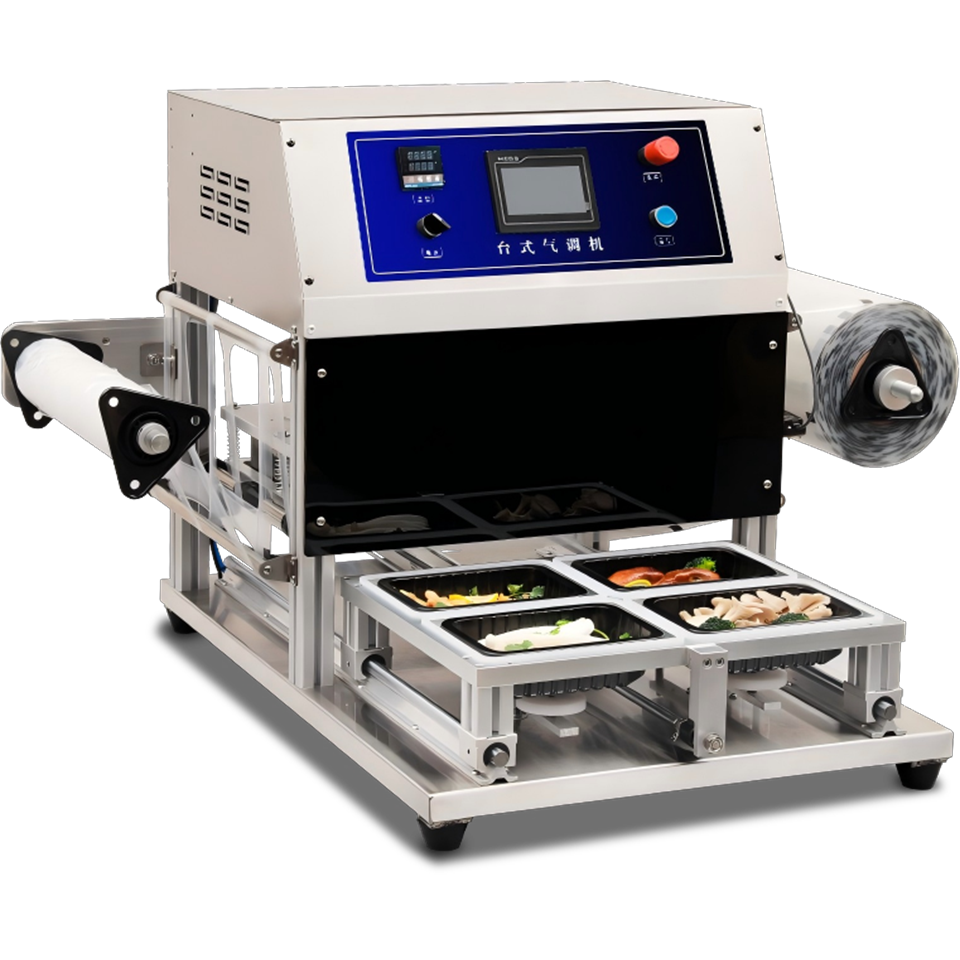

DQ430T-E Tabletop MAP Packaging Machine Modified Atmosphere Sealer
SKU: HB-18
| Gas Displacement | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | DQ430T-E | Dasheng Core Modified Atmosphere Technology | Dasheng Independent Core Technology |
| Max. Roll Film Width (mm) | 430 | Main Structure & Housing | Stainless Steel |
| Max. Roll Film Diameter (mm) | 200 | Mold Part | 6061 Aluminum |
| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Measuring) | Dasheng Self-developed |
| Gas Mixing Accuracy (%) | Fluctuation ±2% | Photoelectric Sensor (Cursor Film) | Xinling Electric |
| Packaging Speed (times/min) | 5～6 | DC Power Supply | Delta |
| Production Capacity (boxes/hour) - 1-out | ≈360 | Air Cylinder | Tianqi |
| Production Capacity (boxes/hour) - 2-out | ≈640 | Solenoid Valve | Airtac (Taiwan) |
| Production Capacity (boxes/hour) - 4-out | ≈1200 | Touch Screen | Kunlun Tongtai |
| Power Supply (V/Hz) | 220/50 | Film Rewinding Motor | Taisong |
| Total Power (kW) | 2.5 | Control System | Dasheng Intelligent Self-developed Control System |
| Working Air Pressure (Mpa) | 0.6～0.8 | Power Switch | Delixi |
| Equipment Weight (kg) | 115 | Relay | Delixi |
| Equipment Dimension LWH (mm) | 11701055700 | Fuse Holder | Delixi |
| Packaged Gross Weight (kg) | 240 | Cartridge Cylinder | Tianqi |
| Anneng Volumetric Weight (kg) | 240 | Temperature Controller | Takahashi |
| Outer Carton Dimension LWH (mm) | 11801180860 | ||
| Max. Tray Size (mm) - 1-out | 550370110 (*1) | ||
| Max. Tray Size (mm) - 2-out | 370260110 (*2) | ||
| Max. Tray Size (mm) - 4-out | 260170110 (*4) |
Product Overview
The DQ430T-E Large-Format Tabletop MAP Packager delivers industrial-scale performance in a space-efficient design, engineered to handle oversized trays up to 550×370×110 mm. With an impressive 430 mm film width and precision gas control achieving ≥99% replacement rate at ±2% accuracy, this advanced system brings laboratory-grade preservation to large-format packaging. The heavy-duty stainless steel construction, integrated with Delta power components and Airtac pneumatic system, ensures reliable 5-6 cycles per minute operation for premium products requiring extended shelf life and superior presentation.Key Features
-
Extra-Wide Packaging Capacity - 430 mm film width accommodates oversized trays up to 550×370 mm
-
Precision Atmosphere Control - Maintains ≥99% gas replacement rate with ±2% accuracy for optimal freshness
-
Heavy-Duty Construction - Industrial-grade stainless steel frame with 6061 aluminum molds
-
High-Efficiency Production - Processes up to 1,200 packages hourly through multi-outlet configurations
-
Smart Touchscreen Operation - Intuitive Kunlun Tongtai interface with self-developed control system
Applications
-
Large-Format Food Packaging - Ideal for whole poultry, large meat cuts, and banquet-sized portions
-
Premium Product Lines - Perfect for gourmet foods, specialty items, and high-value products
-
Wholesale Distribution - Suitable for club stores and food service bulk packaging
-
Specialty Producers - Excellent for artisan foods and craft production businesses
Technical Advantages
-
Consistent gas flushing performance for large-format packages
-
Quick adjustment between different tray configurations
-
Energy-efficient operation at 2.5 kW power consumption
-
Durable construction withstands continuous production demands
-
Compatible with various packaging materials and film types
