DQ320VST Manual Vacuum Skin Packaging Machine 320mm Film Width
SKU: HB-21
| Manual Pressure Skin Packaging | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | DQ320VST | Main Structure & Housing | 304 Stainless Steel |
| Max. Roll Film Width (mm) | 320 | Vacuum Chamber | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 180 | Heating Plate | Teflon |

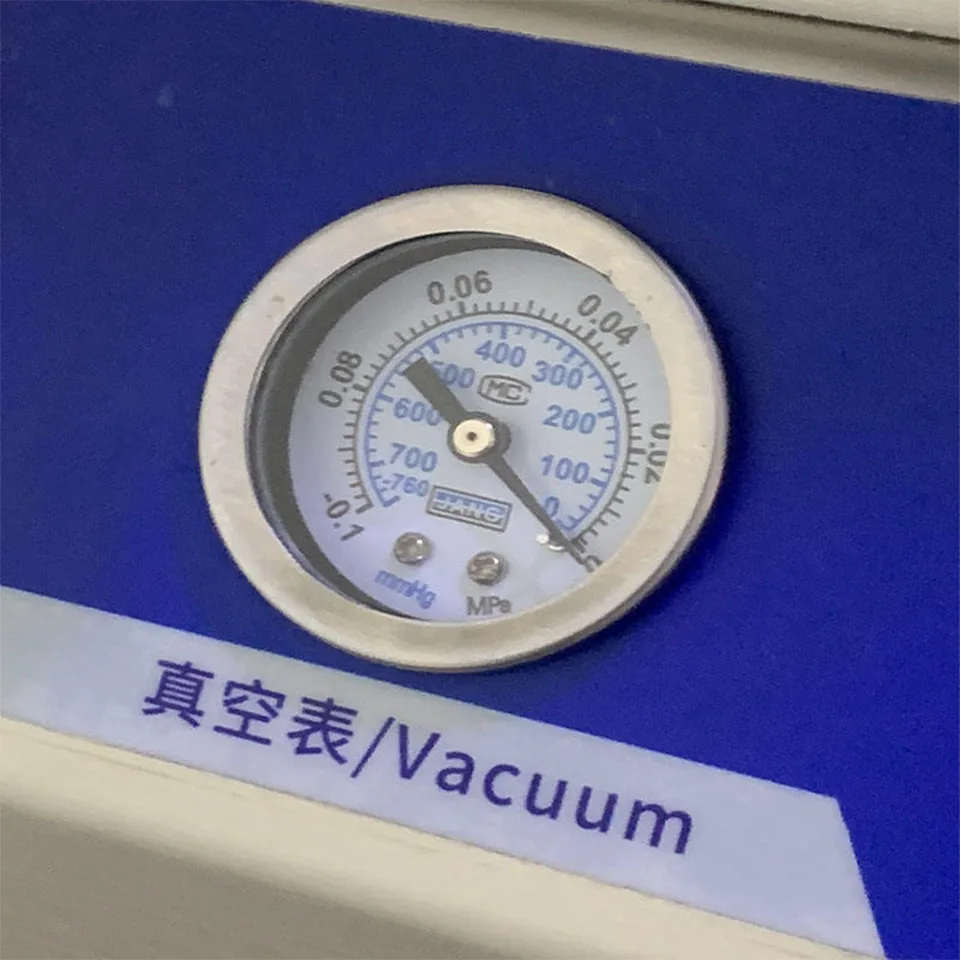

| Packaging Speed (times/min) | 2 | Vacuum Pressure Gauge | JANG |
| Production Capacity (boxes/hour) - 1-out | ≈120 | Time Relay | Xiaolvban (Little Green Board) |

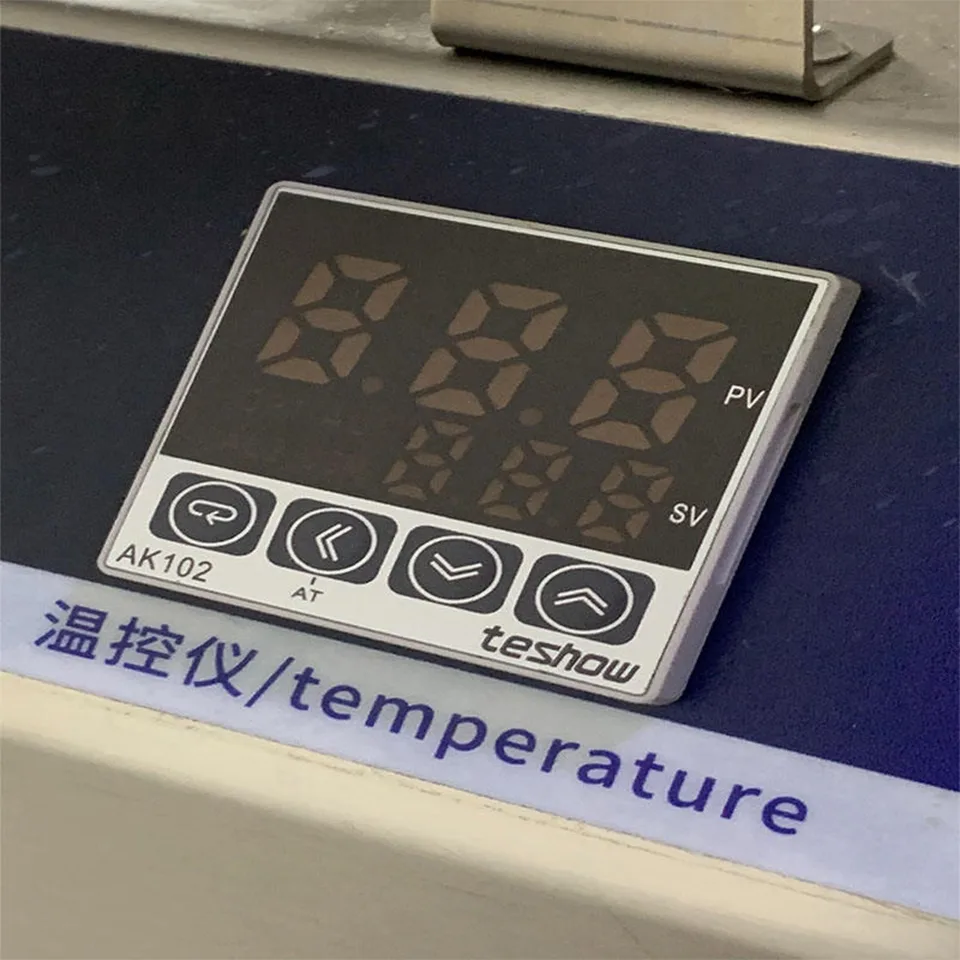

| Production Capacity (boxes/hour) - 2-out | ≈240 | Temperature Controller | Takahashi |
| Production Capacity (boxes/hour) - 4-out | ≈480 | Push Button Switch | Delixi |
| Vacuum Pump Displacement (m³/h) | 20 | Relay | Delixi |
| Power Supply (V/Hz) | 220/50 | Fuse Holder | Delixi |
| Total Power (kW) | 2.5 | Vacuum Pump | Feiyue |
| Equipment Weight (kg) | 55.7 | Solenoid Valve | Airtac (Taiwan) |
| Equipment Dimension LWH (mm) | 630460430 | Micro Switch | MICRO |
| Packaged Gross Weight (kg) | 66.25 | ||
| Anneng Volumetric Weight (kg) | 72 | ||
| Outer Carton Dimension LWH (mm) | 690510530 | ||
| Max. Tray Size (mm) - 1-out | 38027050 (*1) | ||
| Max. Tray Size (mm) - 2-out | 27019050 (*2) | ||
| Max. Tray Size (mm) - 4-out | 20014050 (*4) |
Product Overview
The DQ320VST Manual Vacuum Skin Packager combines professional-grade skin packaging technology with user-friendly operation, delivering exceptional product presentation and preservation in a compact design. Utilizing a powerful 20 m³/h vacuum pump and precision Teflon heating system, this machine creates tight, transparent skin packaging that perfectly contours to product shapes. The heavy-duty 304 stainless steel construction with anodized aluminum vacuum chamber ensures lasting performance, while the intuitive manual operation makes it accessible for small businesses and specialty producers. Ideal for enhancing product visibility and protection, this system brings premium skin packaging capabilities to artisan food producers, boutique retailers, and small-scale manufacturers.
Key Features
-
Professional Skin Packaging - Creates tight, transparent seals that perfectly conform to product contours
-
Powerful Vacuum System - 20 m³/h displacement ensures complete air removal for optimal presentation
-
Premium Heating Technology - Teflon-coated heating plate delivers consistent, non-stick performance
-
Commercial-Grade Construction - 304 stainless steel body with anodized aluminum vacuum chamber
-
Flexible Production Capacity - Processes up to 480 packages hourly across multiple tray configurations
Applications
-
Premium Food Packaging - Ideal for specialty meats, artisan cheeses, and gourmet products
-
Retail Product Presentation - Perfect for boutique foods, confections, and gift items
-
Small-Batch Manufacturing - Excellent for craft producers and local food businesses
-
Sample & Prototype Packaging - Suitable for product development and market testing
-
Technical Advantages
-
Consistent vacuum performance across all production cycles
-
Easy operation with manual pressure control system
-
Compact footprint optimizes workspace efficiency
-
Durable components ensure reliable long-term operation
-
Compatible with various film materials and tray sizes
