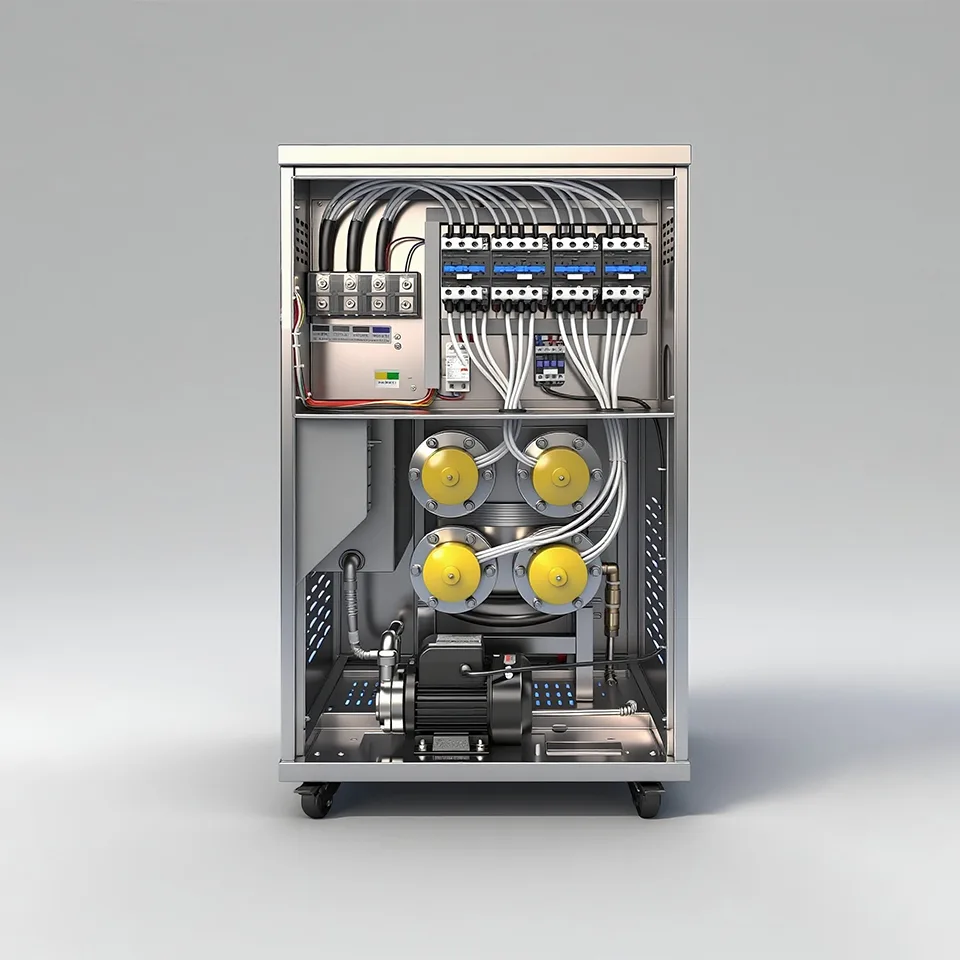

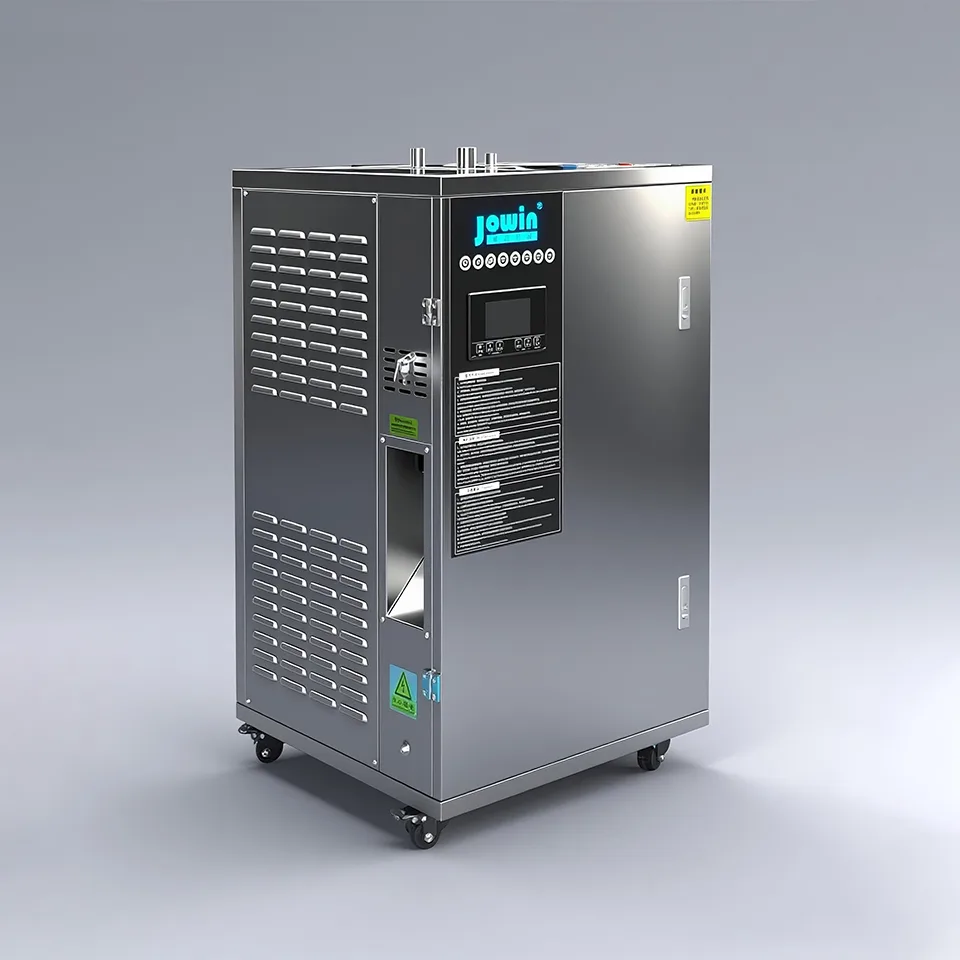

ZY-ZQFSQ-18-0.7 18kW Electric Steam Generator 25kg/h for Commercial Kitchens
SKU: HG-9
| Specification | Details |
|---|---|
| Series | 0.7MPa Series |
| Model | ZY-ZQFSQ-18-0.7 |
| Rated Voltage | 380V N~ |
| Power (kW) | 18 |
| Evaporation Capacity (kg/h) | 25 |
| Effective Volume (L) | <30 |
| Rated Steam Pressure (MPa) | 0.3/0.7 |
| Steam Generation Time (minutes) | 3-5 minutes |
| Applicable Water Pressure (MPa) | 0.15-0.4 |
| Steam Outlet Specification (0.3MPa) | DN25 External Thread |
| Steam Outlet Specification (0.7MPa) | DN15 Internal Thread |
| Water Inlet Specification | DN15 External Thread |
| Drain Outlet Specification | DN25 External Thread |
| Steam Temperature (°C) | 100-171 |
| Dimensions (mm) | 600×600×1050 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 82 |
| Leakage Protection Reference Specification | 63A/4P |
| Copper Cable Reference Specification | 6mm² |
| Aluminum Cable Reference Specification | 10mm² |
Product Overview
Contact us today for bulk ordering inquiries, customization options, or to request technical specifications for your specific food processing needs. Free shipping available on qualifying orders.
Product FAQ
What applications is ZY-ZQFSQ-18-0.7 18kW Electric Steam Generator 25kg/h for Commercial Kitchens suitable for?
ZY-ZQFSQ-18-0.7 18kW Electric Steam Generator 25kg/h for Commercial Kitchens is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HG-9?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: ZY-ZQFSQ-18-0.7 18kW Electric Steam Generator 25kg/h for Commercial Kitchens
- SKU / Model code: HG-9
- Categories: Food Processing Auxiliary Machinery / Steam Generator / 0.7 MPa Electric Steam Generator
- Supplier: Huayi Smart Solutions
