Smart Food Serving Robot
SKU: HY-SFS-001
Smart food serving robot for restaurants with autonomous navigation and multi-tray delivery.

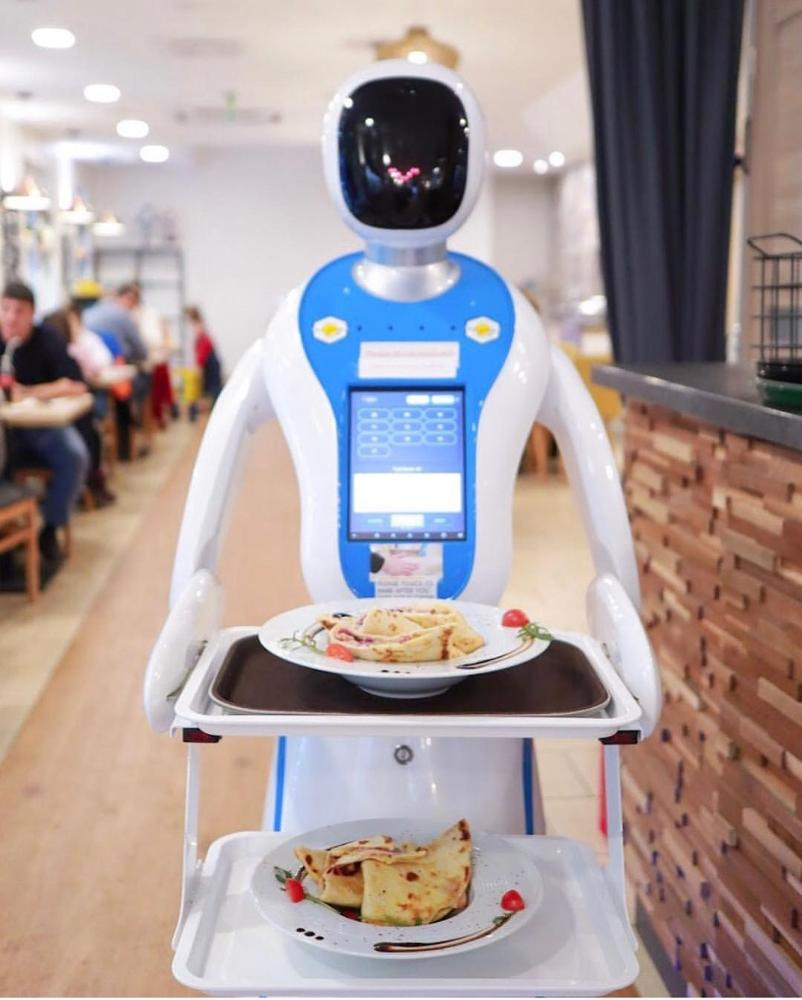

Smart Food Serving Robot
The Smart Food Serving Robot is an autonomous multi-tray delivery robot that carries plated dishes from the kitchen pass to the guest table. It takes over the repetitive walking that fills most of a server's shift, so staff can spend their time on guest care instead of carrying plates.
The robot maps the dining room once during commissioning, then follows its own route to every table. Tray sensors confirm that a dish has been collected before the robot moves on; if a tray is still loaded the robot waits or returns to the kitchen.
How It Works In Service
Staff place the dishes on the trays at the pass and select the table. The robot navigates there on its own, avoiding guests, trolleys and furniture. Multi-modal prompts - tray lighting, voice and on-screen text - tell the guest exactly which tray to take. Once the trays are empty the robot goes back to the pass or to its charging dock.
One robot serves several tables per trip, and several robots can share the same map through fleet scheduling, coordinating their routes so they do not block each other in narrow aisles.
Key Features
- Autonomous SLAM navigation with LiDAR and binocular vision
- Three-tier open tray with 300° opening for fast loading and pickup
- Real-time dynamic obstacle avoidance, 204 detections per cycle
- Fits aisles as narrow as 55 cm
- Tray light, voice and touchscreen pickup prompts
- Automatic return-to-dock charging
- Fleet coordination for multiple robots on one site
Technical Specifications
| Model | HY-SFS-001 |
|---|---|
| Structure | Three-tier open tray, 300° opening |
| Overall dimensions (W x D x H) | 384 x 468 x 1,123 mm |
| Net weight | 38 kg |
| Payload | 20 kg total (5 kg per tray; bottom tray 10 kg) |
| Tray size | 383 x 342 mm |
| Navigation | SLAM + LiDAR + binocular vision |
| Obstacle avoidance | 2+1 binocular vision, 204 real-time dynamic detections |
| Minimum passage width | 55 cm (visual SLAM) / 60 cm (laser SLAM) |
| Maximum speed | 1.2 m/s (visual SLAM) / 0.8 m/s (laser SLAM), adjustable |
| Maximum climbing angle | ≤ 5° |
| Battery life | 10-15 h (visual SLAM) / 8-10 h (laser SLAM) |
| Charging time | 5 h, automatic return-to-dock charging |
| Pickup interaction | Tray light + voice + 10.1" touchscreen |
| Positioning accuracy | ± 50 mm |
| Operating system | Android |
| Multi-robot coordination | Supported; coordinated route scheduling for fleets |
| Operating environment | Indoor, level and smooth floor, dust-free |
Typical Applications
- Restaurants and chain hotels - kitchen-to-table delivery
- Hotels - room service and banquet drink refills
- Canteens and food courts - dish collection and tray return
- Retail and exhibition venues - item transport and mobile display
Deployment Notes
The robot operates on indoor, level and smooth floors. One mapping run covers a normal restaurant; ceiling height, aisle width and the position of the charging dock should be confirmed before delivery. Elevator and door integration is available for multi-floor sites.
Inquiry Information
For a quotation, please send your floor plan, number of tables, expected delivery volume, voltage requirement and destination country.
Product FAQ
What applications is Smart Food Serving Robot suitable for?
Smart Food Serving Robot is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HY-SFS-001?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: Smart Food Serving Robot
- SKU / Model code: HY-SFS-001
- Categories: Catering Robots / Smart Delivery
- Supplier: Huayi Smart Solutions
