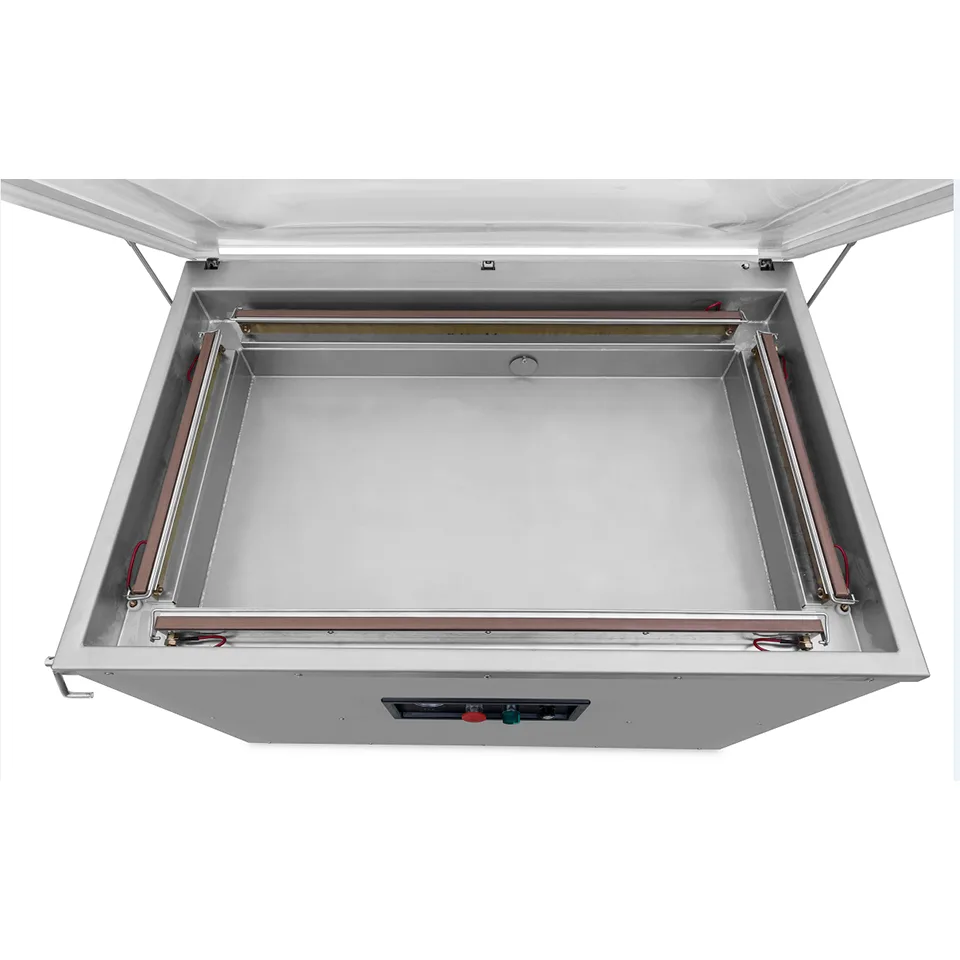

DZ-450/3E Single Chamber 3-Seal Vacuum Packaging Machine
SKU: HB-91
| Parameter | DZ-450/3E Single Chamber | DZ-450/4E Single Chamber |
|---|---|---|
| Basic Information | ||
| English Name | Single Chamber 3-Sealing Bar Vacuum Packaging Machine | Single Chamber 4-Sealing Bar Vacuum Packaging Machine |
| Model | DZ-450/3E | DZ-450/4E |
| Technical Specifications | ||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 |
| Sealing Power (W) | 1400 | 1400 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 |
| Number of Sealing Bars per Chamber | 3 | 4 |
| Chamber Dimensions (L×W×H) (mm) | 1000×540×115 | 1000×600×150 |
| Sealing Length (mm) | 450/850 | 450/850 |
| Sealing Width (mm) | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 1130×660×940 | 1130×720×940 |
| Net Weight (kg) | 200 | 210 |
| Center Distance Between Sealing Bars (mm) | 910 | 910/530 |
Product Overview
Engineered for high-volume food processing operations, the Single-Chamber Multi-Seal Vacuum Packaging Machine delivers exceptional packaging efficiency through advanced multi-bar sealing technology. This professional-grade system combines powerful vacuum performance with multiple sealing configurations to maximize production output while maintaining superior package integrity. Available in three and four sealing bar configurations, the machine addresses demanding packaging requirements in commercial food production environments.
Key Features
Advanced Multi-Seal Configuration - Choose between 3-seal (DZ-450/3E) and 4-seal (DZ-450/4E) models for enhanced production flexibility
High-Capacity Vacuum System - 2000W motor power with 40m³/h total extraction capacity ensures rapid, consistent air removal
Dual Sealing Length Options - 450mm and 850mm sealing lengths support various packaging formats and production needs
Extended Chamber Design - 1000mm chamber length with 540-600mm width accommodates multiple products per cycle
Robust Construction - Stainless steel 201 chambers and heavy-duty frames (200-210kg) ensure long-term reliability
Optimized Sealing Performance - 1400W sealing power with 10mm wide seals delivers secure, airtight packaging
Applications
High-volume food processing operations
Batch packaging of multiple products
Portioned food and meal component packaging
Meat and poultry processing facilities
Prepared food and ingredient packaging
Technical Excellence
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Industrial-grade components support continuous 24/7 operation
Extended sealing bar configuration increases production efficiency
Standard 220V power compatibility simplifies facility integration
Heavy-duty construction withstands demanding production environments
For food processing operations requiring high-capacity packaging solutions, the Single-Chamber Multi-Seal Vacuum Packaging Machine offers enhanced production capabilities with professional-grade reliability. Contact us for technical specifications and configuration guidance.
Product FAQ
What applications is DZ-450/3E Single Chamber 3-Seal Vacuum Packaging Machine suitable for?
DZ-450/3E Single Chamber 3-Seal Vacuum Packaging Machine is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-91?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: DZ-450/3E Single Chamber 3-Seal Vacuum Packaging Machine
- SKU / Model code: HB-91
- Categories: Packaging Machine / Single Chamber Vacuum Sealer / Vacuum Sealer
- Supplier: Huayi Smart Solutions
