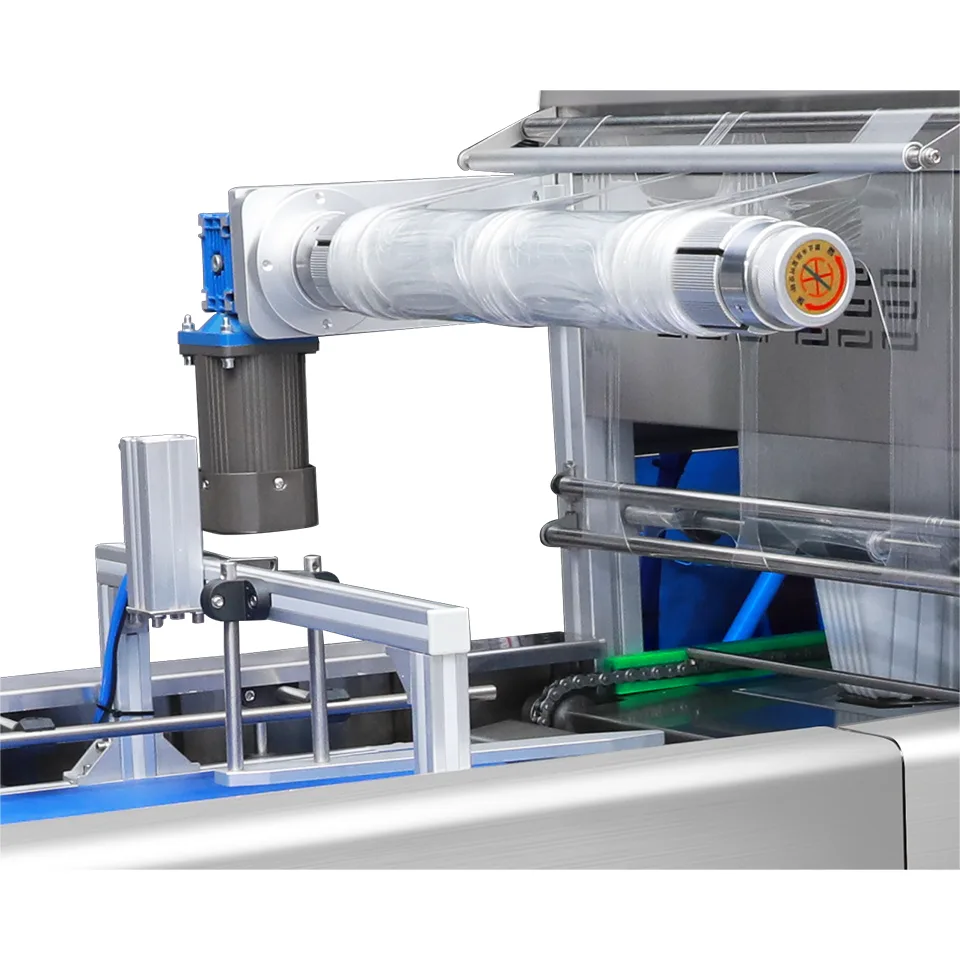

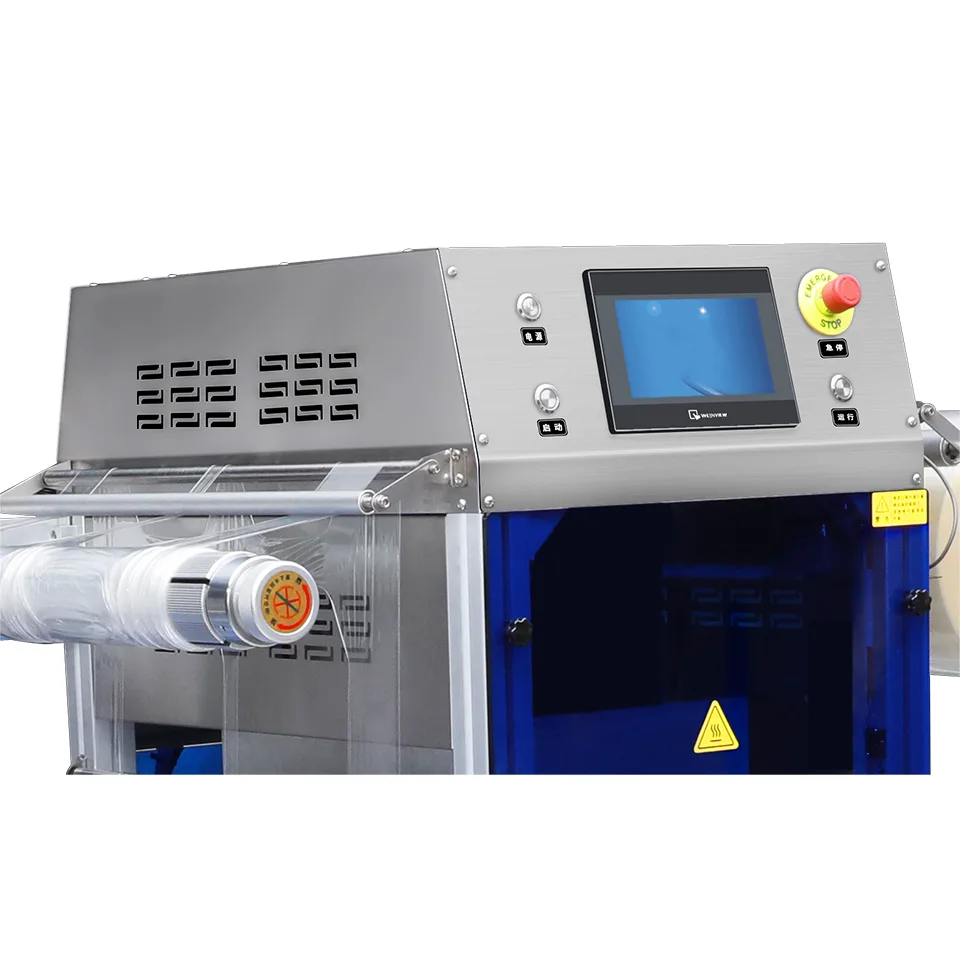

DQ630AT-VS Continuous Flow Packaging Machine 650mm Film 900-1000 Boxes/Hour
SKU: HB-34
| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ630AT-VS | Main Structure & Shell |
| Type | Continuous Flow Packaging Machine | Molding Parts |
| Max Film Width (mm) | 650 | Photoelectric Sensor (Length Counter) |
| Max Film Diameter (mm) | 220 | Photoelectric Sensor (Mark Film) |
| Packing Speed (times/min) | 5-6 | DC Power Supply |
| Output Capacity (boxes/hour) Output 3 | 900-1000 | Cylinder |
| Vacuum Pump Capacity (m³/h) | 200 | Solenoid Valve |
| Power Supply (V/Hz) | 380/50 | Touch Screen |
| Total Power (kW) | 7 | Film Winding Motor |
| Working Pressure (MPa) | 0.6-0.8 | Control System |
| Equipment Weight (kg) | 340 | Push Button Switch |
| Equipment Dimensions L×W×H (mm) | 1850×890×1450 | Circuit Breaker |
| Gross Weight (kg) | 452 | Relay |
| Net Weight (kg) | 452 | Fuse Holder |
| Package Dimensions L×W×H (mm) | 1880×1160×1630 | Vacuum Pump |

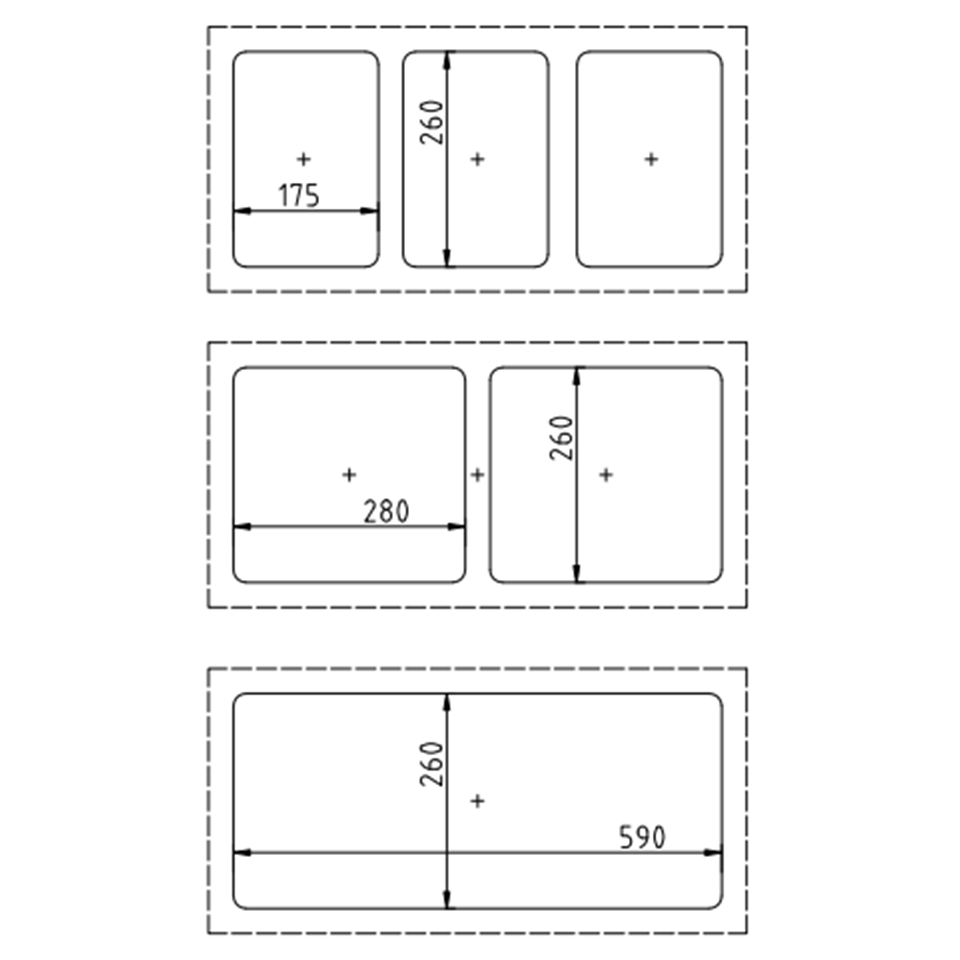

| Max Tray Size (mm) Output 3 | 260×175×40 (*3) | Film Winding System |
Product Overview
The DQ630AT-VS Continuous Flow Packaging Machine delivers industrial-scale efficiency with its extra-wide 650mm film capacity and powerful 200 m³/h vacuum system, achieving remarkable outputs of 900-1000 packages per hour. Engineered for uninterrupted production lines, this heavy-duty machine maintains consistent 5-6 cycles per minute while handling substantial tray sizes up to 260×175×40mm. The fully stainless steel construction ensures durability and hygiene compliance in demanding food processing environments.
Key Features
-
Extra-Wide Continuous Operation - 650mm film width supports large-format packaging requirements
-
High-Capacity Vacuum System - 200 m³/h pump ensures efficient air removal and packaging integrity
-
Industrial-Scale Output - Processes 900-1000 packages hourly for maximum productivity
-
Heavy-Duty Construction - Full stainless steel frame built for continuous operation
- Precision Control System - Advanced sensors and touchscreen interface for optimal performance
Applications
-
Large-Scale Food Processing - Ideal for high-volume meat, poultry, and prepared foods
-
Industrial Meal Production - Perfect for institutional packaging and food service portions
-
Frozen Food Lines - Excellent for frozen vegetable, seafood, and ready meal packaging
- Bulk Product Packaging - Suitable for high-volume retail and distribution operations
Technical Advantages
-
Continuous operation capability for non-stop production
-
Quick adjustment for different product configurations
-
Energy-efficient performance with optimized power usage
-
Robust components ensure minimal maintenance requirements
- Compatible with various packaging materials and film types
Operation & Support
Each unit undergoes rigorous factory testing and includes comprehensive operational documentation. Professional technical support provides complete installation guidance and ongoing maintenance services.
Product FAQ
What applications is DQ630AT-VS Continuous Flow Packaging Machine 650mm Film 900-1000 Boxes/Hour suitable for?
DQ630AT-VS Continuous Flow Packaging Machine 650mm Film 900-1000 Boxes/Hour is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-34?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: DQ630AT-VS Continuous Flow Packaging Machine 650mm Film 900-1000 Boxes/Hour
- SKU / Model code: HB-34
- Categories: Packaging Machine / Continuous Vacuum Sealer / Vacuum Sealer
- Supplier: Huayi Smart Solutions
