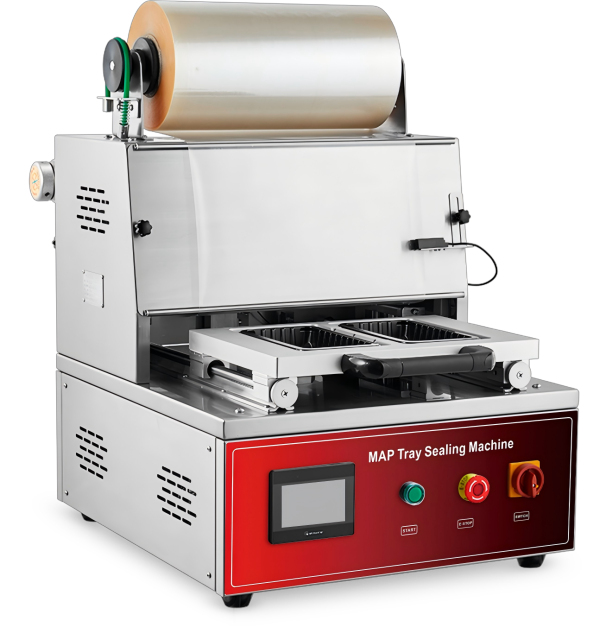

DQ400T-E Tabletop MAP Tray Packaging Machine 5-6 Cycles Min Output
SKU: HB-15
The Tabletop Modified Atmosphere Tray Sealing Machine is a compact and efficient MAP sealing device designed with a 304 stainless steel body and 6061 anodized aluminum molds. Equipped with photoelectric sensors, an intelligent control system, and durable components, it ensures a gas replacement rate of ≥99%, providing fast, precise, and stable tray sealing for high-quality packaging.
Product Details
| Style | Electric – Air Flow Replacement | Main Configuration | Main Configuration |
|---|---|---|---|
| Equipment Model | DQ400T – E | Dasheng Core Air Conditioning Technology | Dasheng Self – Developed Core Technology |
| Max. Width of Wrapper (mm) | 390 | Main Structure and Shell | 304 Stainless Steel |
| Max. Diameter of Wrapper (mm) | 220 | Mold Part | 6061 Aluminum (Anodized) |
| Air Replacement Rate | ≥99% | Photoelectric Sensor (Long – Range) | Panasonic (Japan) |
| Gas Distribution Precision (%) | Fluctuation ≤±2% | Photoelectric Sensor (Optical Fiber) | Chengguang Electric |
| Packaging Speed (times/min) | 5 – 60 | Straight – Flow Power Supply | Hexin |
| Capacity (boxes/hour) – Out 1 | ≥360 | Film Collection Motor | Kunlun Tongtai |
| Capacity (boxes/hour) – Out 2 | ≥640 | Film Collection Motor | Lianhong |
| Power Supply (V/Hz) | 220/50 | Sealing Machine | Ouyi |
| Total Power (kw) | 1.8 | Control System | Dasheng Smart Energy Self – Developed Control System |
| Working Air Pressure (Mpa) | 0.6 – 0.8 | Button Switch | Delixi |
| Equipment Weight (kg) | 90 | Circuit Breaker | Delixi |
| Equipment Dimensions:LWH (mm) | 835*570*800 | Relay | Delixi |
| Packaging Net Weight (kg) | 139 | Fuse Holder | Delixi |
| Installation Weight (kg) | – | Film Collection System | Handwheel |
| Outer Packaging Dimensions:LWH (mm) | 950*800*910 | Power Switch | GeYa |
| Max. Box Size (mm) – Out 1 | 330*220*70 (*1) | Electrical Cabinet | Yadeke (Taiwan) |
| Max. Box Size (mm) – Out 2 | 220*150*70 (*2) |
Product Overview
The Tabletop Modified Atmosphere Tray Sealing Packaging Machine is a high-efficiency, intelligent MAP sealing device designed for the precise and reliable packaging of fresh food products. It supports tray sizes up to 330 × 220 × 70 mm, with a sealing speed of 5–6 cycles per minute.
Featuring a 304 stainless steel body and 6061 anodized aluminum molds, the machine achieves a gas replacement rate of ≥99% ±2% accuracy, ensuring excellent preservation and consistent packaging quality. It is ideal for supermarkets, central kitchens, and food processing lines.
Key Features
•Durable Construction — A 304 stainless steel body and 6061 anodized aluminum molds provide long-lasting stability and precise sealing performance.
•Advanced MAP Gas Flushing Technology — Achieves a ≥99% gas replacement rate for extended freshness and food safety.

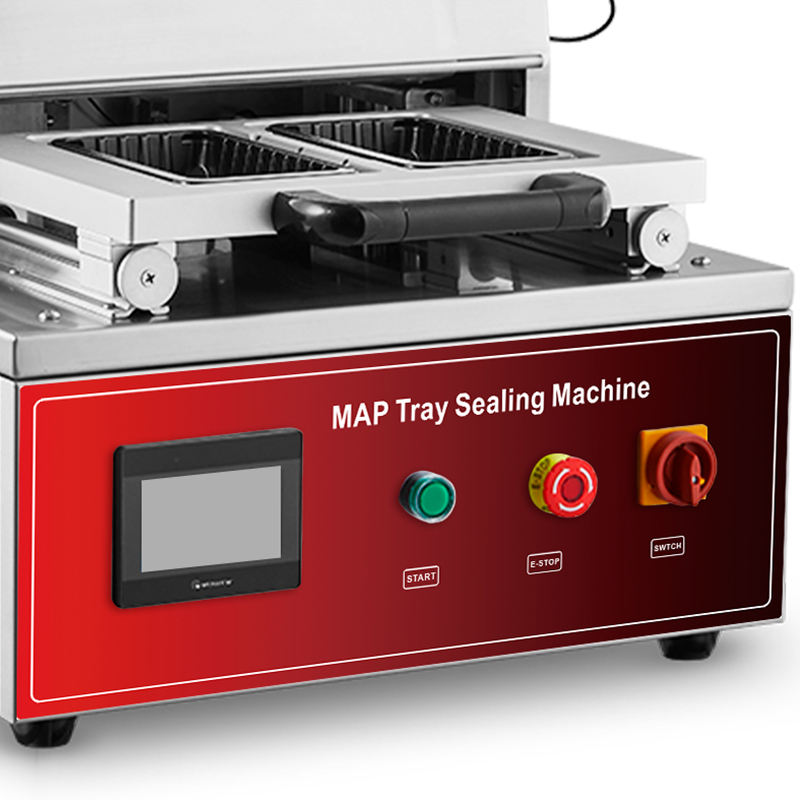

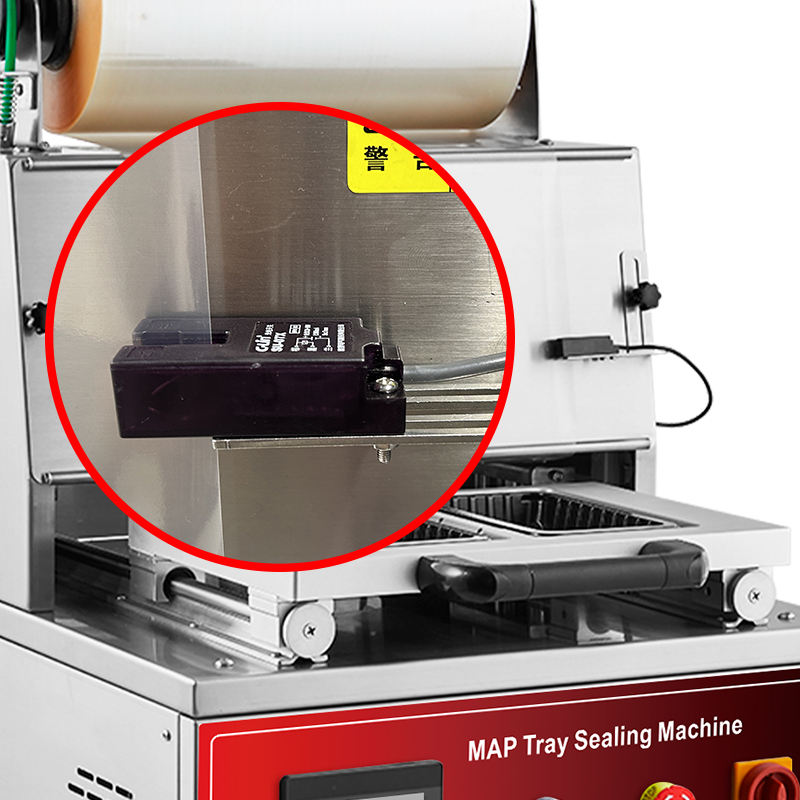

•High-Quality Sensors & Control — Equipped with Panasonic photoelectric sensors and a smart touchscreen control system for accurate tray positioning and easy operation.
•Reliable Electrical Components — Includes Delta DC power supply, Lianyi sealing motor, Delixi switches, and relays for safe and stable performance.
•Compact & Lightweight Design — Dimensions: 835 × 570 × 800 mm, weighing 90 kg, ideal for limited workspace environments.
Applications
The Tabletop MAP Tray Sealer is suitable for a wide range of packaging scenarios:
•Food Industry — Fresh produce, ready-to-eat meals, snacks, and vacuum-packed products.
•Retail & Supermarket Packaging — Pre-packed trays for display and sale.
•Catering & Central Kitchens — Efficient batch packaging for restaurants and meal prep services.
•Small Batch or Pilot Production — Ideal for R&D and laboratory packaging applications.
Advantages
High Efficiency — 5–6 sealing cycles per minute for consistent, high-quality results
Precise Gas Control — ±2% gas accuracy ensures optimal food preservation
Fully Automatic Operation — Reduces manual labor and improves productivity
Reliable & Durable — Industrial-grade materials minimize maintenance needs
Flexible & Adaptable — Supports a variety of tray sizes and film types
Product FAQ
What applications is DQ400T-E Tabletop MAP Tray Packaging Machine 5-6 Cycles Min Output suitable for?
DQ400T-E Tabletop MAP Tray Packaging Machine 5-6 Cycles Min Output is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-15?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: DQ400T-E Tabletop MAP Tray Packaging Machine 5-6 Cycles Min Output
- SKU / Model code: HB-15
- Categories: Packaging Machine / MAP Packaging Machine / Modified Atmosphere Packaging Machine
- Supplier: Huayi Smart Solutions
