DQ380VST Manual Vacuum Skin Packaging Machine 370mm Film Width
SKU: HB-22
| Manual Pressure Skin Packaging | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | DQ380VST | Main Structure & Housing | 304 Stainless Steel |
| Max. Roll Film Width (mm) | 370 | Vacuum Chamber | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 180 | Heating Plate | Teflon |
| Packaging Speed (times/min) | 2 | Vacuum Pressure Gauge | JANG |
| Production Capacity (boxes/hour) - 1-out | ≈120 | Touch Screen | Kunlun Tongtai |
| Production Capacity (boxes/hour) - 2-out | ≈240 | Temperature Controller | Takahashi |
| Production Capacity (boxes/hour) - 4-out | ≈480 | Control System | Dasheng Intelligent Self-developed Control System |
| Vacuum Pump Displacement (m³/h) | 20 | Relay | Delixi |
| Power Supply (V/Hz) | 220/50 | Fuse Holder | Delixi |
| Total Power (kW) | 2.8 | Vacuum Pump | Feiyue |
| Equipment Weight (kg) | 64.8 | DC Power Supply | Mean Well |
| Equipment Dimension LWH (mm) | 680510450 | Micro Switch | MICRO |
| Packaged Gross Weight (kg) | 78 | ||
| Anneng Volumetric Weight (kg) | 78 | ||
| Outer Carton Dimension LWH (mm) | 750580520 | ||

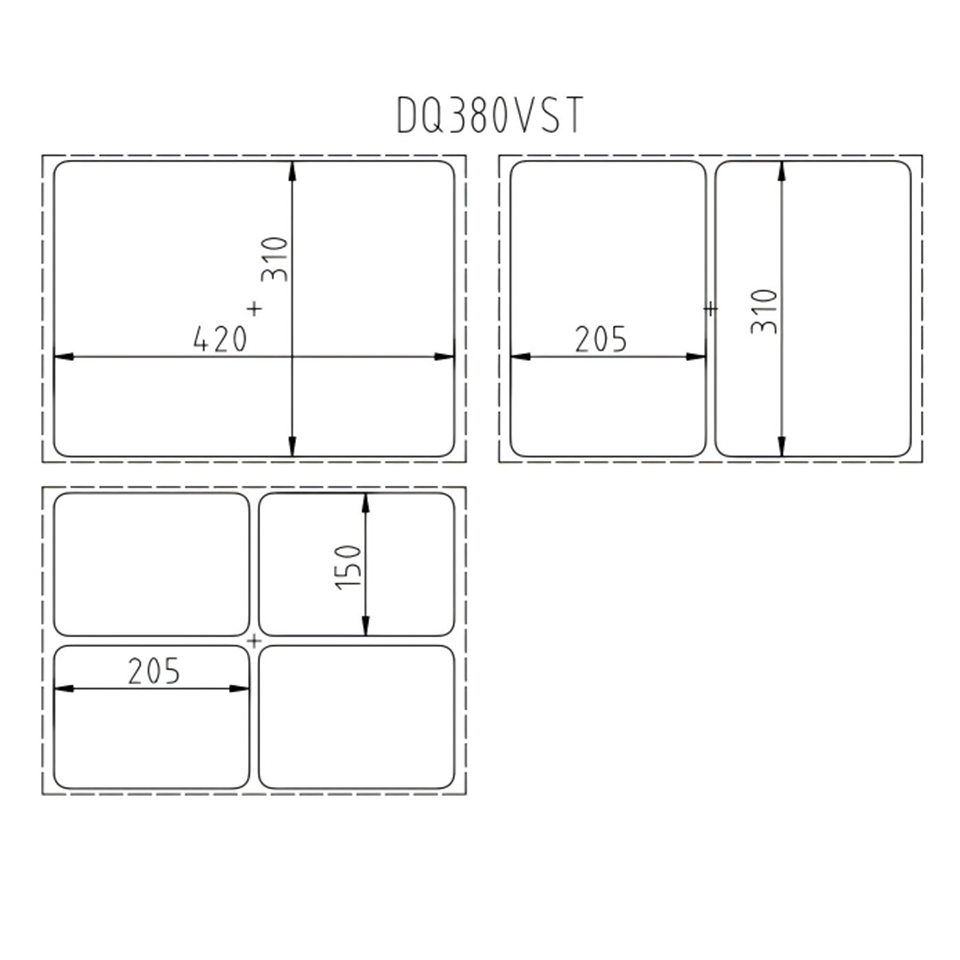

| Max. Tray Size (mm) - 1-out | 42031050 (*1) | ||
| Max. Tray Size (mm) - 2-out | 31020550 (*2) | ||
| Max. Tray Size (mm) - 4-out | 20515050 (*4) |
Product Overview
The DQ380VST Manual Vacuum Skin Packager combines professional-grade preservation technology with user-friendly operation, delivering exceptional product presentation and extended shelf life. This compact system features a 20 m³/h vacuum pump and advanced Teflon heating plates, creating tight, transparent skin packaging that perfectly contours to product shapes. With its 304 stainless steel construction and precision temperature control, it ensures consistent 2 cycles per minute performance across multiple tray sizes. Ideal for premium food items and retail-ready packaging, this machine brings high-impact visual appeal and superior protection to small-batch producers and specialty food businesses.
Key Features
-
Premium Vacuum Performance - 20 m³/h displacement capacity ensures optimal air removal for perfect skin adhesion
-
Professional Heating System - Teflon-coated heating plates with precise temperature control deliver consistent sealing results
-
Compact Industrial Design - 680×510×450mm stainless steel construction fits perfectly in limited workspace environments
-
Multi-format Compatibility - Handles trays up to 420×310×50mm with flexible 1-out to 4-out configurations
-
Intelligent Operation - Kunlun Tongtai touchscreen and Takahashi temperature controller for precise parameter adjustment
Applications
-
Premium Meat & Seafood - Perfect for steak, fish fillets, and gourmet protein presentation
-
Specialty Foods - Ideal for artisan cheeses, baked goods, and confectionery items
-
Retail Display Packaging - Excellent for high-value products requiring enhanced visual appeal
-
Small-Batch Production - Suitable for local producers, farm stands, and specialty food shops
Technical Advantages
-
Consistent vacuum performance across all production cycles
-
Rapid changeover between different tray sizes and formats
-
Durable 304 stainless steel construction ensures long service life
-
Energy-efficient operation with optimized 2.8kW power consumption
-
Compatible with various skin film materials and tray types
Product FAQ
What applications is DQ380VST Manual Vacuum Skin Packaging Machine 370mm Film Width suitable for?
DQ380VST Manual Vacuum Skin Packaging Machine 370mm Film Width is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-22?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: DQ380VST Manual Vacuum Skin Packaging Machine 370mm Film Width
- SKU / Model code: HB-22
- Categories: Packaging Machine / Skin Packaging Machine / Overwrapping Machine
- Supplier: Huayi Smart Solutions
