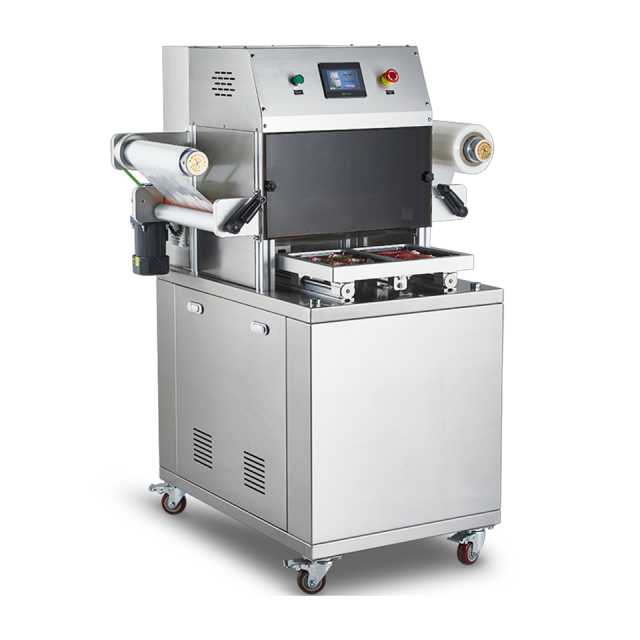

DQ330VSL Vertical Skin Packaging Machine 63m³/h Vacuum High-Quality Food Sealer
SKU: HB-32
| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ330VSL | Main Structure & Shell |
| Type | Vertical Skin Packaging Machine | Molding Parts |
| Max Film Width (mm) | 320 | Photoelectric Sensor (Length Counter) |
| Max Film Diameter (mm) | 220 | DC Power Supply |
| Packing Speed (times/min) | 2-3 | Variable Frequency Drive |
| Output Capacity (boxes/hour) Output 1 | ≈180 | Pressure Sensor |
| Output Capacity (boxes/hour) Output 2 | ≈300 | Cylinder |
| Vacuum Pump Capacity (m³/h) | 63 | Solenoid Valve |
| Power Supply (V/Hz) | 380/50 | Touch Screen |

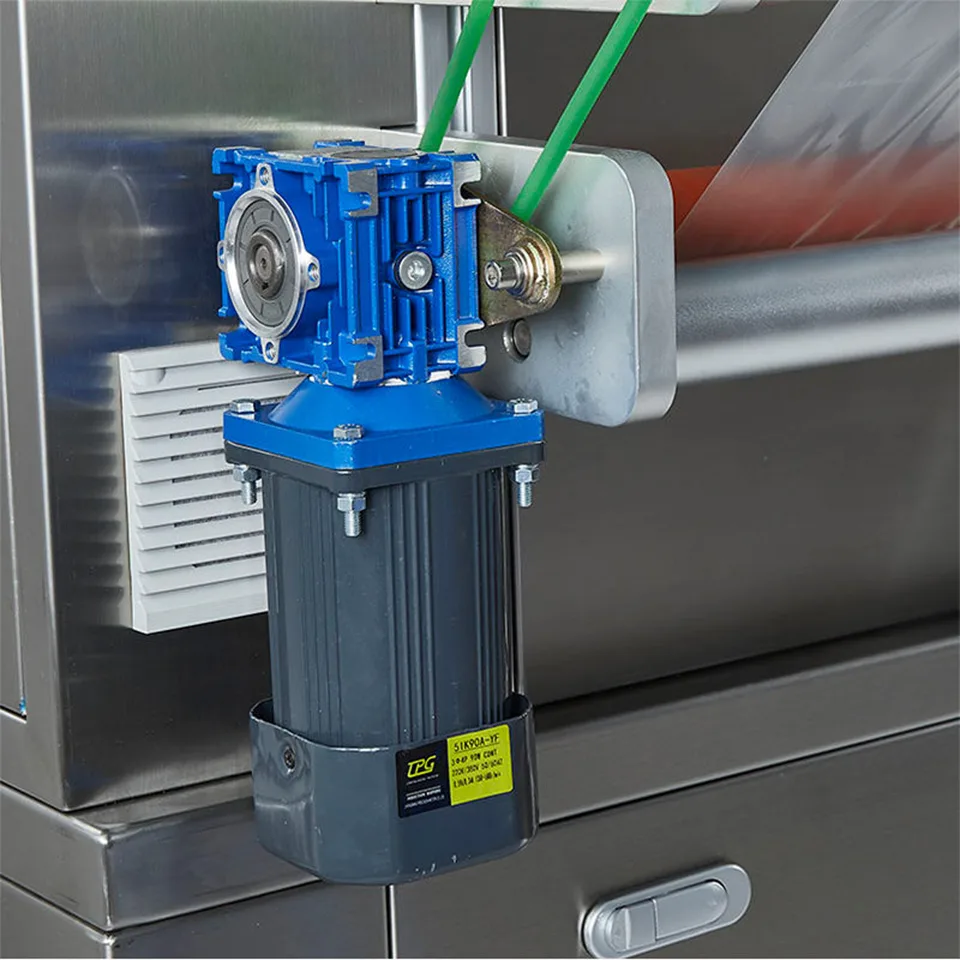

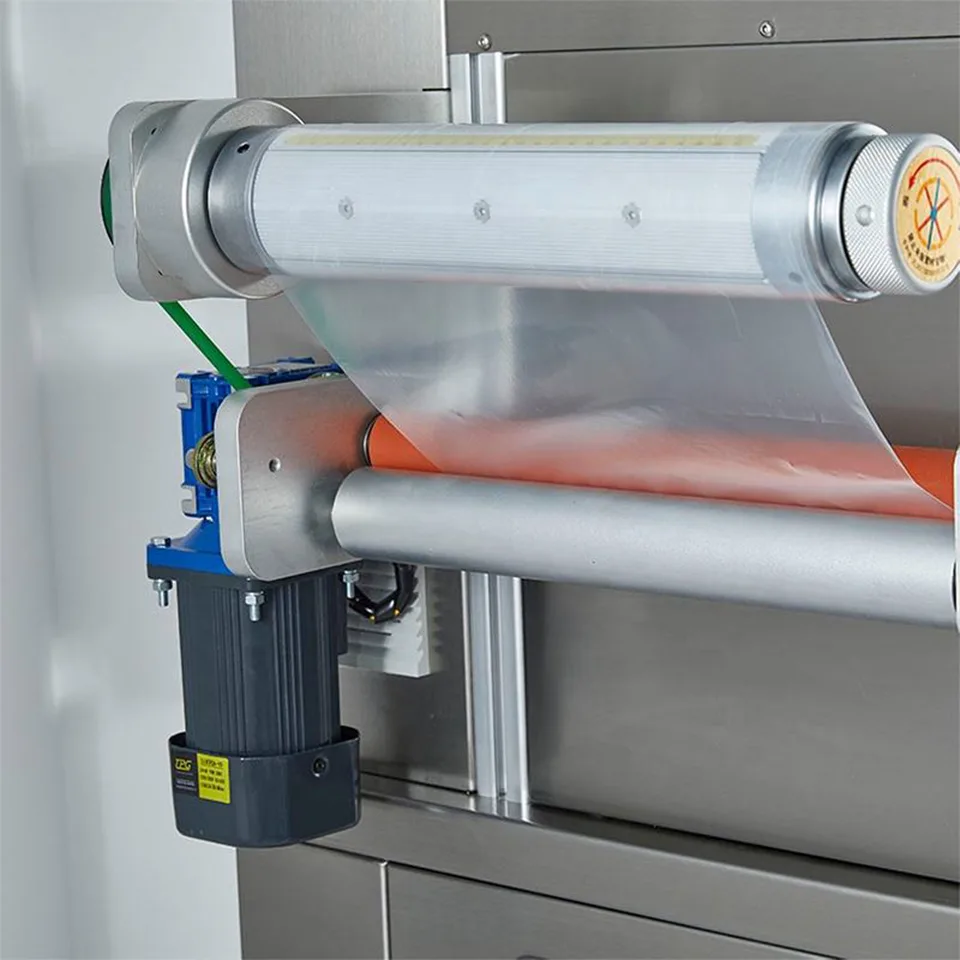

| Total Power (kW) | 4 | Film Winding Motor |
| Working Pressure (MPa) | 0.6-0.8 | Control System |
| Equipment Weight (kg) | 237 | Push Button Switch |
| Equipment Dimensions L×W×H (mm) | 1020×1005×1400 | Circuit Breaker |
| Gross Weight (kg) | 350 | Relay |
| Net Weight (kg) | 350 | Fuse Holder |
| Package Dimensions L×W×H (mm) | 1110×1020×1550 | Vacuum Pump |

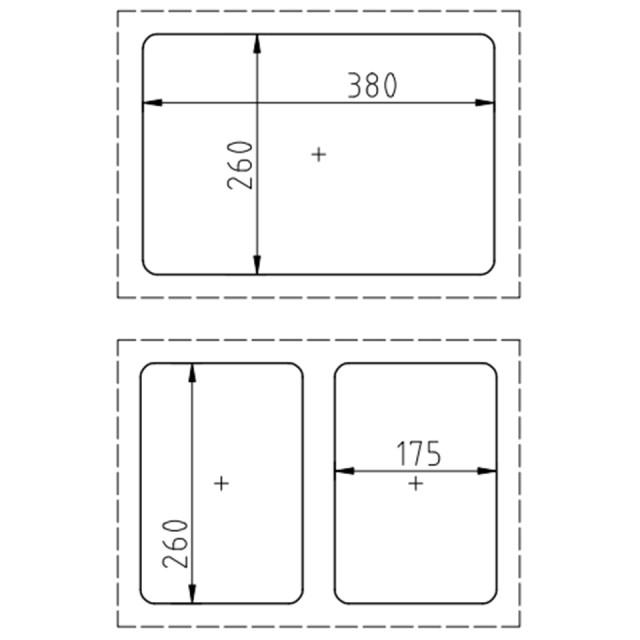

| Max Tray Size (mm) Output 1 | 380×260×40 (*1) | Film Winding System |
| Max Tray Size (mm) Output 2 | 260×175×40 (*2) |
Product Overview

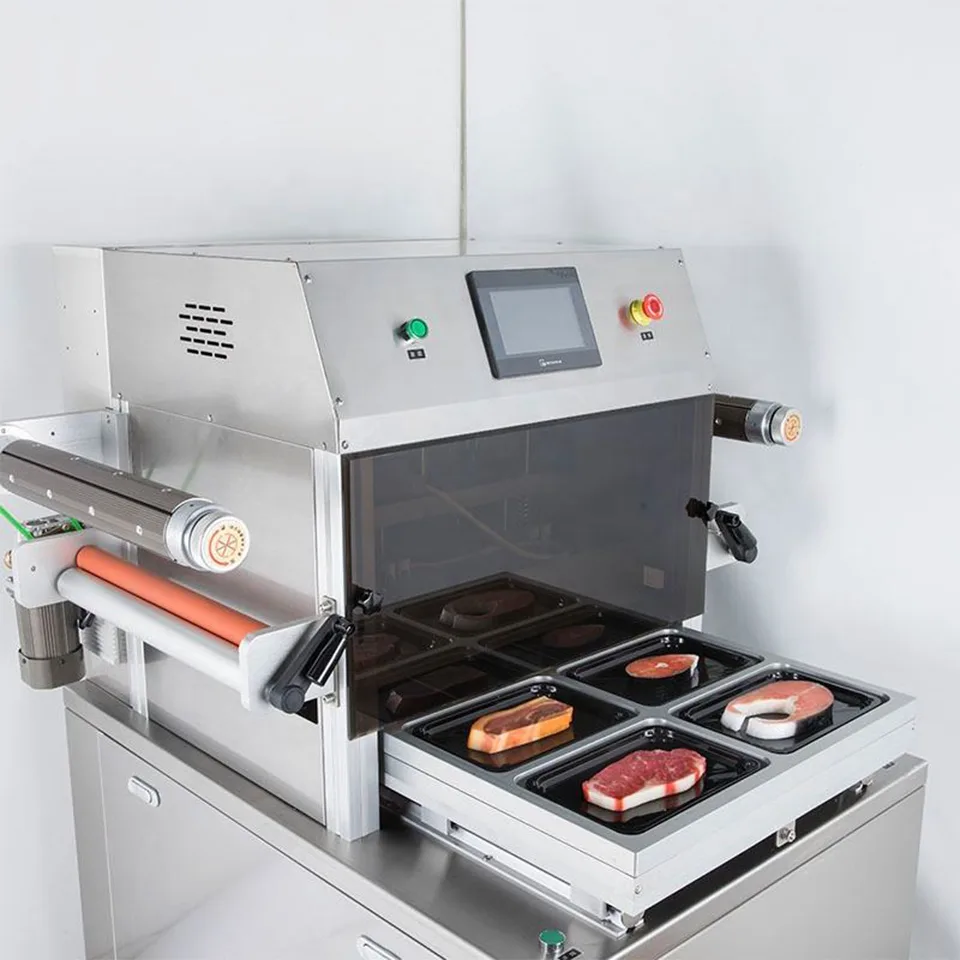

The DQ330VSL Vertical Skin Packaging Machine delivers exceptional product presentation through advanced vacuum-skin technology, creating crystal-clear packaging that molds perfectly to product contours. Engineered for premium food applications, this robust system combines a powerful 63 m³/h vacuum pump with precision thermal controls to achieve flawless, airtight seals. Built with industrial-grade materials and designed for continuous operation, it maintains consistent 2-3 cycles per minute while handling diverse product sizes up to 380×260×40mm.
Key Features
-
Advanced Skin Packaging - Creates form-fitting transparent packaging for enhanced product visibility
-
High-Capacity Vacuum System - 63 m³/h pump ensures perfect film adhesion and oxygen removal
-
Versatile Production Capacity - Processes 180-300 packages hourly across multiple tray configurations
-
Professional-Grade Construction - Durable stainless steel frame with precision components

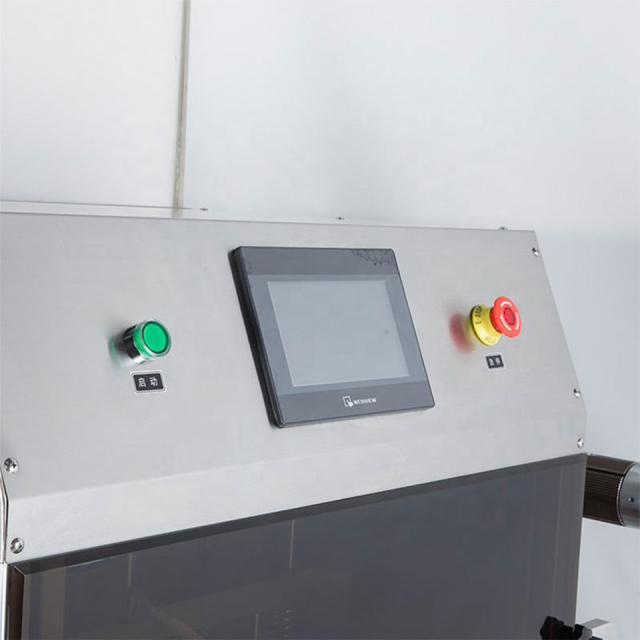

- Intuitive Operation - User-friendly touchscreen with automated control system
Applications
-

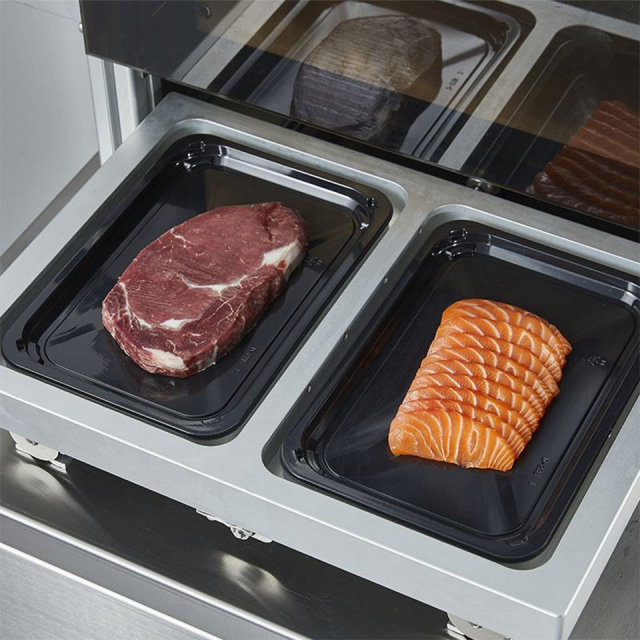

Premium Meat & Seafood - Ideal for steaks, fish fillets, and gourmet protein presentation
-
Specialty Foods - Perfect for artisan cheeses, baked goods, and confectionery items
-
Ready-to-Eat Meals - Excellent for premium meal kits and prepared food lines
- Retail Products - Suitable for high-value items requiring enhanced visual appeal
Technical Advantages
-
Consistent vacuum performance across production cycles
-
Quick changeover between different product sizes
-
Energy-efficient operation with optimized power management
-
Hygienic design with easy-clean surfaces
- Compatible with various skin packaging films
Operation & Support
Each machine undergoes rigorous testing and includes detailed documentation. Professional technical support ensures seamless integration and ongoing operational excellence.
Product FAQ
What applications is DQ330VSL Vertical Skin Packaging Machine 63m³/h Vacuum High-Quality Food Sealer suitable for?
DQ330VSL Vertical Skin Packaging Machine 63m³/h Vacuum High-Quality Food Sealer is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-32?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: DQ330VSL Vertical Skin Packaging Machine 63m³/h Vacuum High-Quality Food Sealer
- SKU / Model code: HB-32
- Categories: Packaging Machine / Skin Packaging Machine / Overwrapping Machine
- Supplier: Huayi Smart Solutions
