DQ-1 Manual Press Sealer 304 Stainless Steel 480 Boxes/Hour Compact
SKU: HB-1
| Style | Cross Cutting Specifications | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | DQ-1 | Housing | 304 Stainless Steel |
| Max. Roll Film Width (mm) | 180 | Mold Part | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 180 | Heating Plate | Teflon |
| Packaging Speed (times/min) | 7～8 | Temperature Controller | Omron/Taisong |
| Production Capacity (boxes/hour) 1-out-1 | ≈480 | Power Switch | Meiyu |
| Power Supply (V/Hz) | 220/50 | Labor-Saving Handle | Reinforced Nylon |
| Total Power (kW) | 1 | Solid State Relay | Xinda |
| Equipment Weight (kg) | 13.5 | ||
| Equipment Dimension LWH (mm) - Open | 610295610 | ||
| Equipment Dimension LWH (mm) - Closed | 665295285 | ||
| Packaged Gross Weight (kg) | 17.15 | ||
| Anneng Volumetric Weight (kg) | 12 | ||
| Outer Carton Dimension LWH (mm) | 600315315 | ||

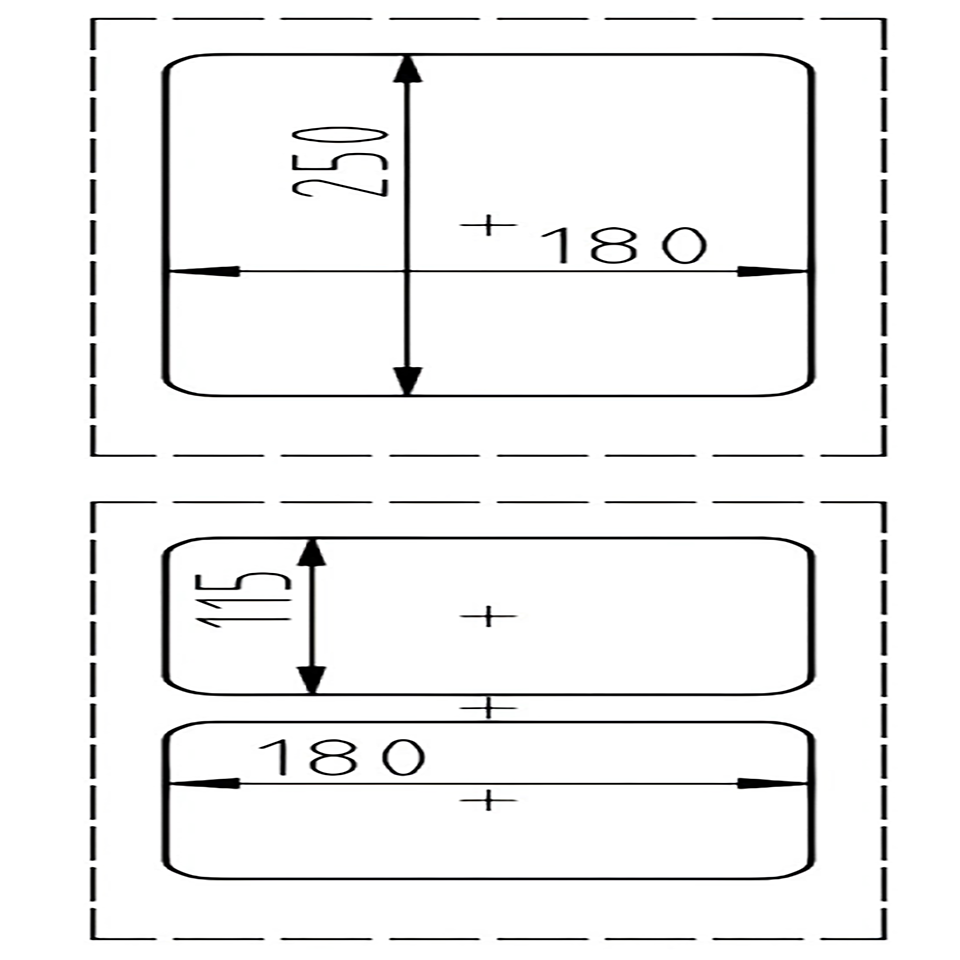

| Max. Tray Size (mm) - 1-out | 250180130 (*1) | ||
| Max. Tray Size (mm) - 2-out | 180115130 (*2) |
Product Overview
The DQ-1 Manual Press Sealing Machine is a compact and efficient solution for sealing a variety of food containers quickly and reliably. Designed with a 304 stainless steel body and anodized aluminum mold, it delivers consistent heat sealing for trays up to 250×180×130 mm. With a sealing speed of 7–8 cycles per minute and an output of approximately 480 packages per hour, this machine is ideal for small to medium-scale food businesses seeking to improve packaging efficiency and product freshness.
Key Features
-
Durable & Hygienic Build – Made with 304 stainless steel and 6061 anodized aluminum for long-lasting use and easy cleaning.
-
Consistent Sealing Performance – Equipped with a Teflon-coated heating plate and Omron/Taisong temperature controller for even heat distribution and reliable seals.
-
Easy Manual Operation – Features an ergonomic nylon handle for smooth and effortless pressing, reducing operator fatigue.
-
Compact & Space-Saving – Folds down to 665×295×285 mm for convenient storage and transport, perfect for limited workspace.
-
Ready to Use – Simple setup with standard 220V/50Hz power supply, requiring only 1 kW total power consumption.
Applications
-
Food & Beverage – Sealing meal prep trays, snack boxes, dessert cups, and takeaway containers.
-
Retail & Catering – Ideal for delis, bakeries, juice bars, and prepared food counters.
-
Small-Batch Production – Suitable for cloud kitchens, farmers' markets, and specialty food startups.
Advantages
-
No complex training or installation required
-
Low maintenance with industrial-grade components
-
Portable and easy to store when not in use
-
Cost-effective solution for daily sealing needs
Contact Us
Interested in the DQ-1 Manual Press Sealer? Reach out for pricing, bulk order discounts, or OEM customization options. We offer reliable after-sales support and worldwide shipping.
Product FAQ
What applications is DQ-1 Manual Press Sealer 304 Stainless Steel 480 Boxes/Hour Compact suitable for?
DQ-1 Manual Press Sealer 304 Stainless Steel 480 Boxes/Hour Compact is designed for commercial kitchens, central kitchens, restaurants, canteens and food processing projects. Final selection should be confirmed according to capacity, materials, site conditions, voltage and hygiene requirements.
Can this product be customized or supplied as OEM?
Customization such as voltage, dimensions, material grade, functions, logo and packaging can be evaluated when confirmed in writing. The final scope is subject to the quotation and order confirmation.
How are warranty, spare parts, returns or replacements handled?
Warranty, spare parts, return and replacement matters depend on product category, customization level, product condition and installation environment, and are subject to the final written documents and applicable laws.
How can I get an accurate quotation for HB-1?
Please provide the model, quantity, destination port or delivery location, power requirements, application scenario and expected delivery time. We will prepare a written offer based on configuration, packaging, transport and trade terms.
Product Details
Product Reference
- Product name: DQ-1 Manual Press Sealer 304 Stainless Steel 480 Boxes/Hour Compact
- SKU / Model code: HB-1
- Categories: Packaging Machine / Tray Sealer / Modified Atmosphere Packaging Machine
- Supplier: Huayi Smart Solutions
